Valve adapter
connection thread M 30 x 1.5


Valve adapter, threaded connection M 30 x 1.5

For thermal actuators 10124.. and 1012953.

Replacement valve adapter for thermal actuators.
Art.No.: 1012461
EAN: 4026755422139
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Is accessory of

mote 320 Wireless actuator (proprietary radio communication) battery operated, connection thread M 30 x 1.5
Item no. 1150665
mote 420 Wireless actuator (EnOcean) battery operated, connection thread M 30 x 1.5
Item no. 1150766
Aktor T 2P Thermal actuator, on/off control 230 V AC, normally closed, connection thread M 30 x 1.5
Item no. 1012415
Aktor T 2P Thermal actuator, on/off control 230 V AC, normally open, connection thread M 30 x 1.5
Item no. 1012425
Aktor T ST Thermal actuator, 0 - 10 V control 24 V AC, normally closed, connection thread M 30 x 1,5
Item no. 1012953
Aktor T 2P Thermal actuator, on/off control 24 V AC / DC, normally closed, connection thread M 30 x 1.5
Item no. 1012416
Aktor T 2P Thermal actuator, on/off control 24 V AC / DC, normally open, connection thread M 30 x 1.5
Item no. 1012426
Aktor T 2P Thermal actuator, on/off control 230 V AC, normally closed with integrated auxiliary switch, connection thread M 30 x 1.5
Item no. 1012435
Aktor T 2P Thermal actuator, on/off control 24 V AC / DC, normally closed, M 30 x 1.5, cable length 2 m
Item no. 1012442
Aktor T 2P Thermal actuator, on/off control 230 V AC, normally closed, connection thread M 30 x 1.5, cable length 2 m
Item no. 1012452
Aktor T 2P Thermal actuator, on/off control 230 V AC, normally closed, connection thread M 30 x 1.5, cable length 5 m
Item no. 1012455
Aktor T 2P Thermal actuator, on/off control 230 V AC, normally closed, connection threadM 30 x 1.5, cable length 10 m
Item no. 1012459

Dimensions

Dimensions of article

Length Width Height Weight
27 mm 42 mm 27 mm 0,02 kg

Packing units

Type Qty. Length Width Height Weight
Bag 1 26 mm 41 mm 26 mm 0,02 kg
Carton 5 92 mm 76 mm 55 mm 0,11 kg

Images

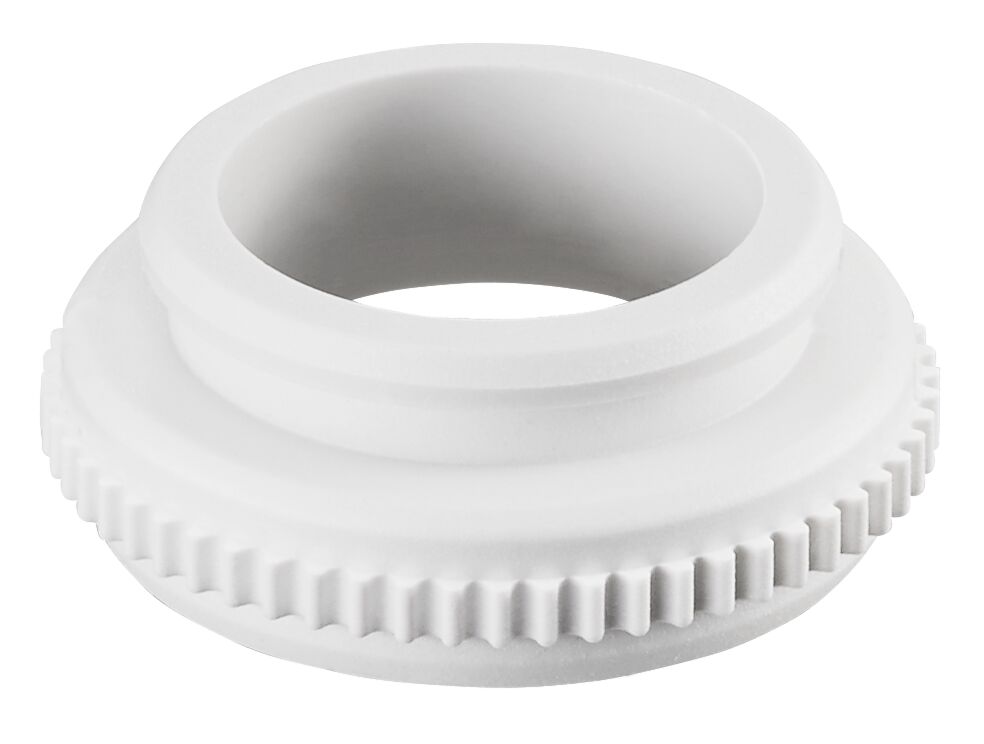

Product images

  File size
26,01 KB
  Size
984 px x 744 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
13,53 KB
  Size
567 px x 208 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0
Property Value
Length of connection cable 0 m
Electric servomotor accessory/spare part Adapter kit
Thermal servomotor accessory/spare part Adapter kit
