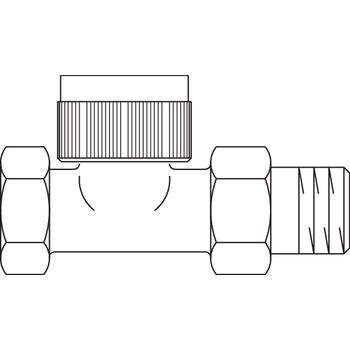

AV 9 Thermostatic valve, straight (self-sealing)
DN 15, Rp ½ x R ½, PN 10


For manual hydronic balancing at the radiator in central heating and cooling system with closed circuits. Installation in the supply pipe.
The integrated AV 9 valve insert allows for infinitely adjustable presetting to adapt the volume flow to the required heat demand. The AV 9 thermostatic valves are available in angle, straight, reversed angle and double angle versions.
The body of the valve is made of brass and the surface is nickel plated. The spindle is made of stainless steel.


Art.No.: 1183884
EAN: 4026755358438
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Actuators

Aktor T 2P Thermal actuator, on/off control 230 V AC, normally closed, connection thread M 30 x 1.5
Item no. 1012415
Aktor T 2P Thermal actuator, on/off control 24 V AC / DC, normally closed, connection thread M 30 x 1.5
Item no. 1012416
Aktor T 2P Thermal actuator, on/off control 230 V AC, normally open, connection thread M 30 x 1.5
Item no. 1012425
Aktor T 2P Thermal actuator, on/off control 24 V AC / DC, normally open, connection thread M 30 x 1.5
Item no. 1012426
Aktor T 2P Thermal actuator, on/off control 230 V AC, normally closed with integrated auxiliary switch, connection thread M 30 x 1.5
Item no. 1012435
Aktor T 2P Thermal actuator, on/off control 24 V AC / DC, normally closed, M 30 x 1.5, cable length 2 m
Item no. 1012442
Aktor T 2P Thermal actuator, on/off control 230 V AC, normally closed, connection thread M 30 x 1.5, cable length 2 m
Item no. 1012452
Aktor T 2P Thermal actuator, on/off control 230 V AC, normally closed, connection thread M 30 x 1.5, cable length 5 m
Item no. 1012455
Aktor T 2P Thermal actuator, on/off control 230 V AC, normally closed, connection threadM 30 x 1.5, cable length 10 m
Item no. 1012459
Aktor M Motorized actuator, on/off control, with short running time (3 s) 230 V AC, connection thread M 30 x 1.5
Item no. 1012710
Aktor M Motorized actuator, on/off control, with short running time (3 s) 24 V AC / DC, connection thread M 30 x 1.5
Item no. 1012711
Aktor M ST L NC Motorized actuator, modulating with 0 - 10 V 24 V AC / DC, modulating proportional actuator, connection thread M 30 x 1.5
Item no. 1012717
Aktor M Electromotive actuator, modulating with 0 - 10 V modulating with 0 - 10 V, 24 V AC / DC, modulating proportional actuator, connection thread M 30 x 1.5
Item no. 1012725
Aktor M Motorized actuator, modulating with 0 - 10 V 24 V AC / DC, modulating proportional actuator with position feedback, connection thread M 30 x 1.5
Item no. 1012726
Aktor M Motorized actuator, on/off and floating control 230 V AC, connection thread M 30 x 1.5
Item no. 1012729
Aktor M Motorized actuator with KNX interface 21 - 32 V (from KNX bus), connection thread M 30 x 1.5
Item no. 1012746
Aktor T ST Thermal actuator, 0 - 10 V control 24 V AC, normally closed, connection thread M 30 x 1,5
Item no. 1012953
mote 320 Wireless actuator (proprietary radio communication) battery operated, connection thread M 30 x 1.5
Item no. 1150665

Dimensions

Dimensions of article

Length Width Height Weight
94 mm 33 mm 67 mm 0,28 kg

Packing units

Type Qty. Length Width Height Weight
Bag 1 95 mm 34 mm 68 mm 0,28 kg
Carton 25 295 mm 195 mm 164 mm 7,31 kg
Europallet 2800 1200 mm 800 mm 1308 mm 841,61 kg

Images

Product images

  File size
301,37 KB
  Size
2252 px x 1884 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
16,83 KB
  Size
597 px x 341 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0
Property Value
Surface protection Nickel-plated
Automatic flow control
With dust cap
With compression set
Suitable for single pipe system
Suitable for two pipe system
Shortened construction length
Reverse direction of flow
Size of thermostatic adjustment element M30 x 1.5
Can be preset
Housing material Brass
Thermostatically prepared
With bent tailpiece
