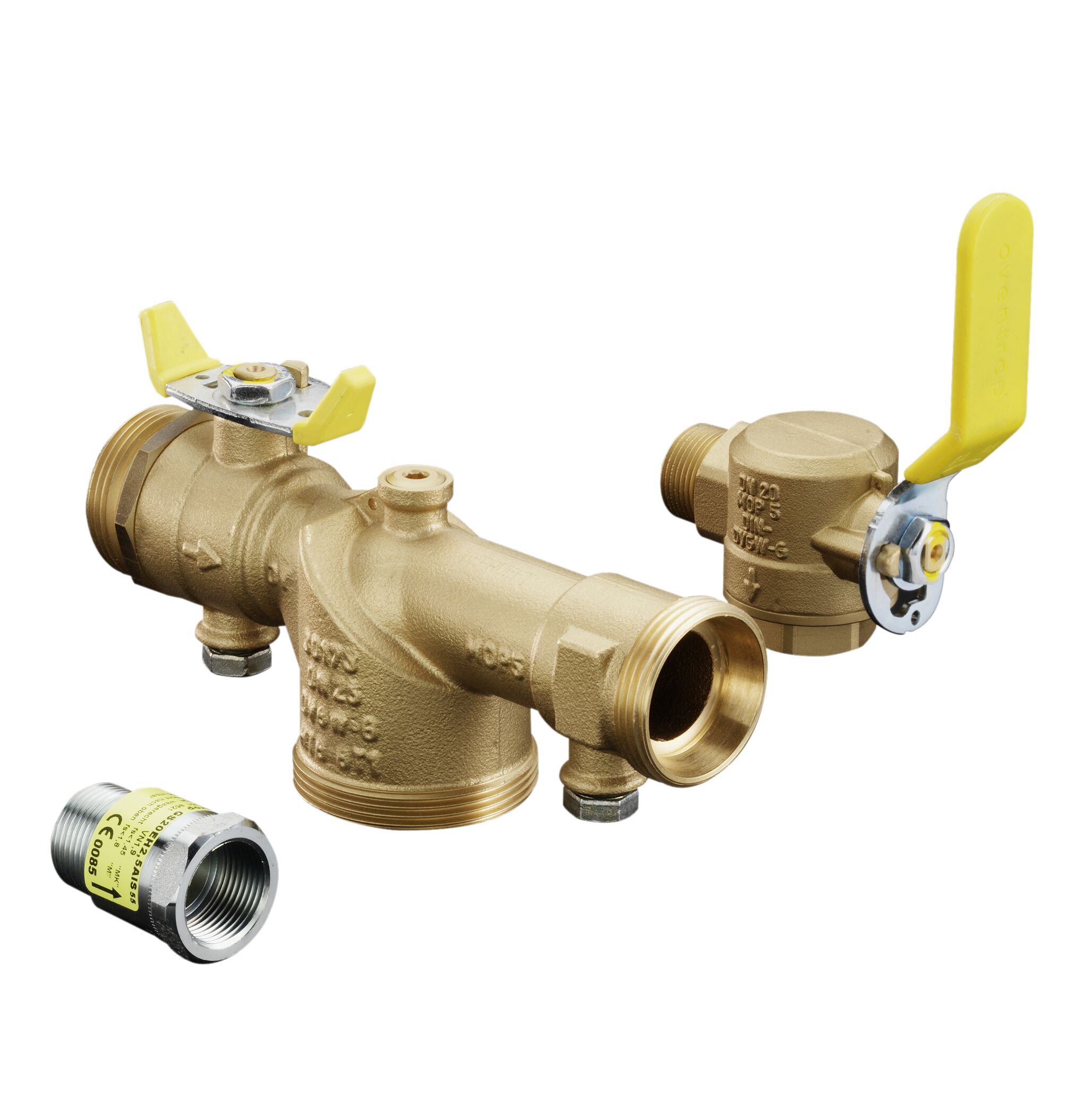

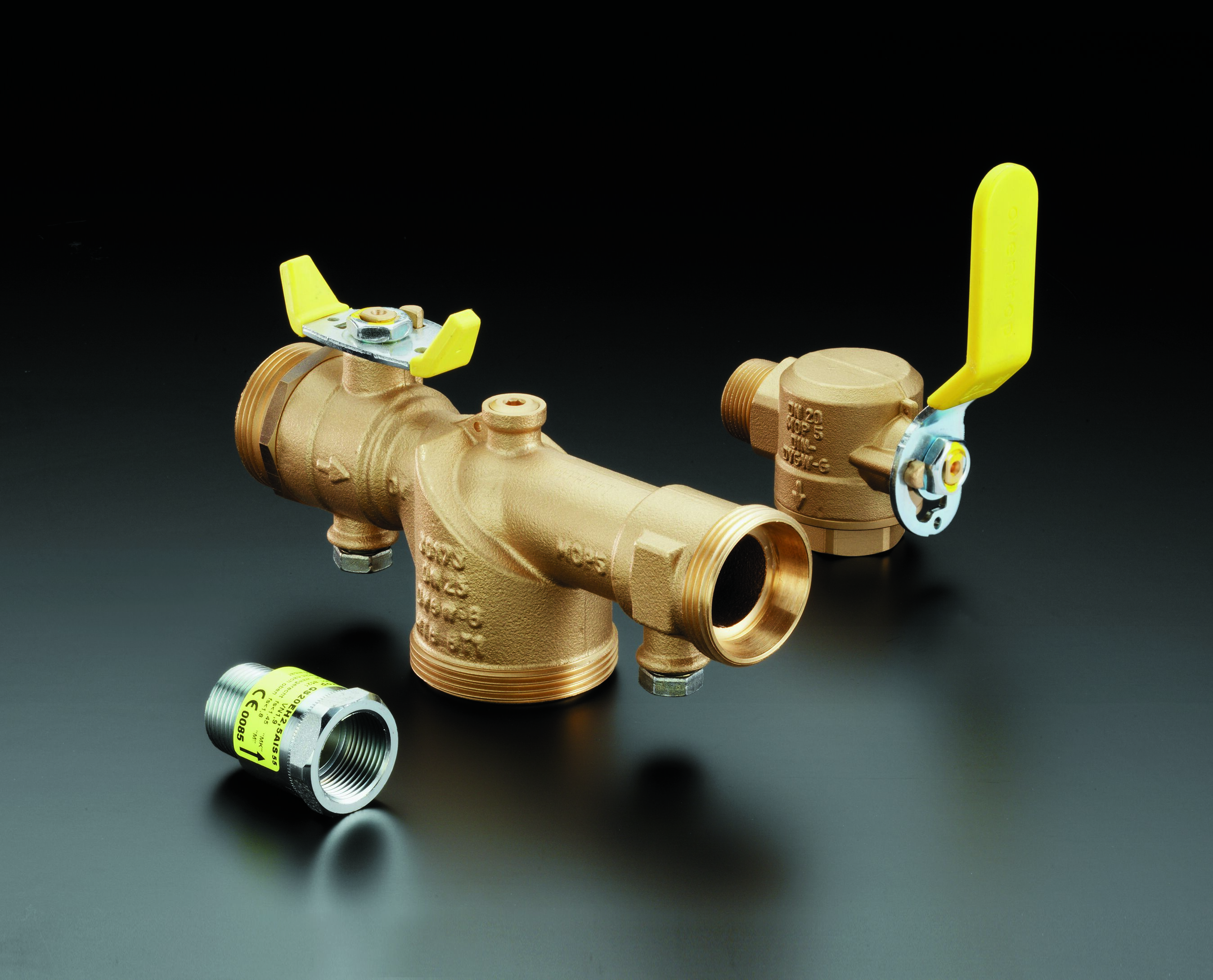

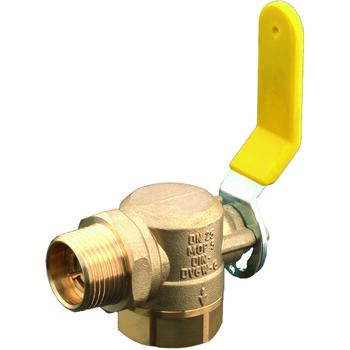

Optigas Angle ball valve for two pipe gas meters
DN 20, R ¾ x Rp ¾, brass


No longer produced
Art.No.: 3013506
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
130 mm 106 mm 47 mm 0,56 kg

Packing units

Type Qty. Length Width Height Weight

Images

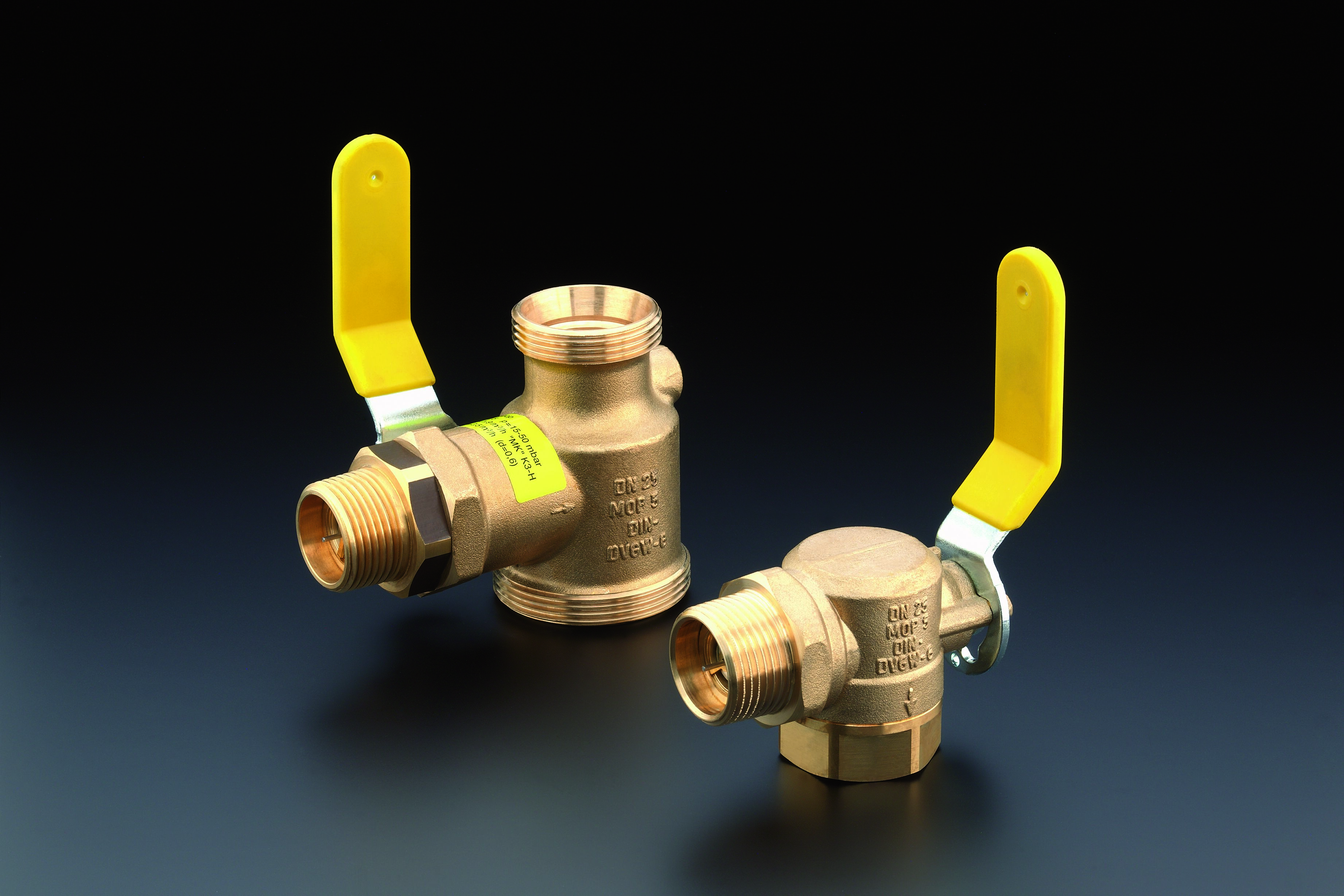

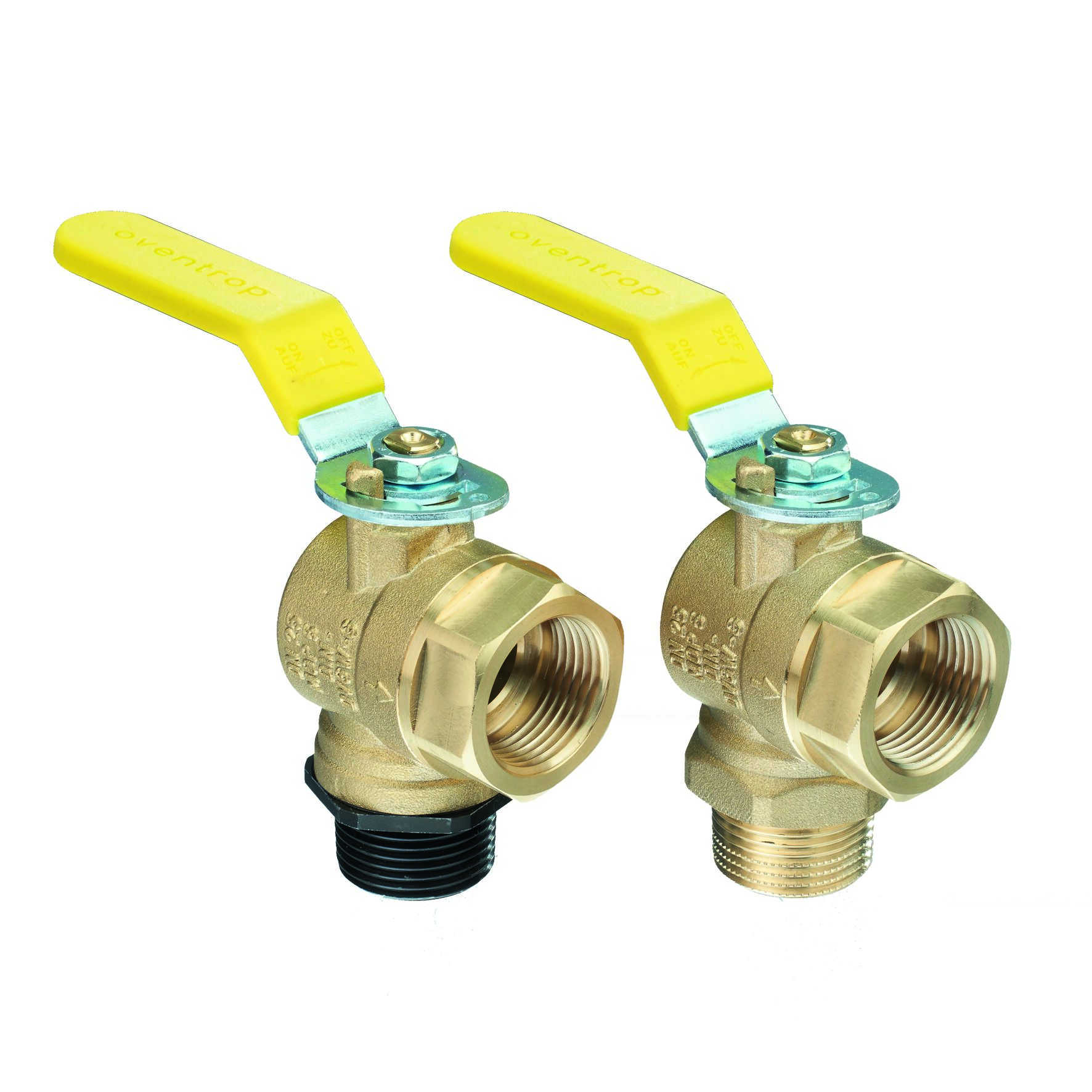

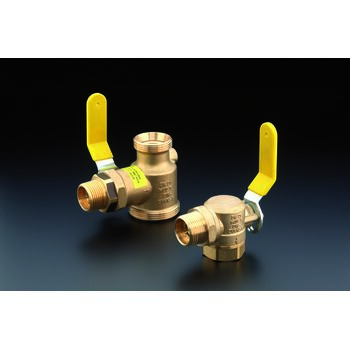

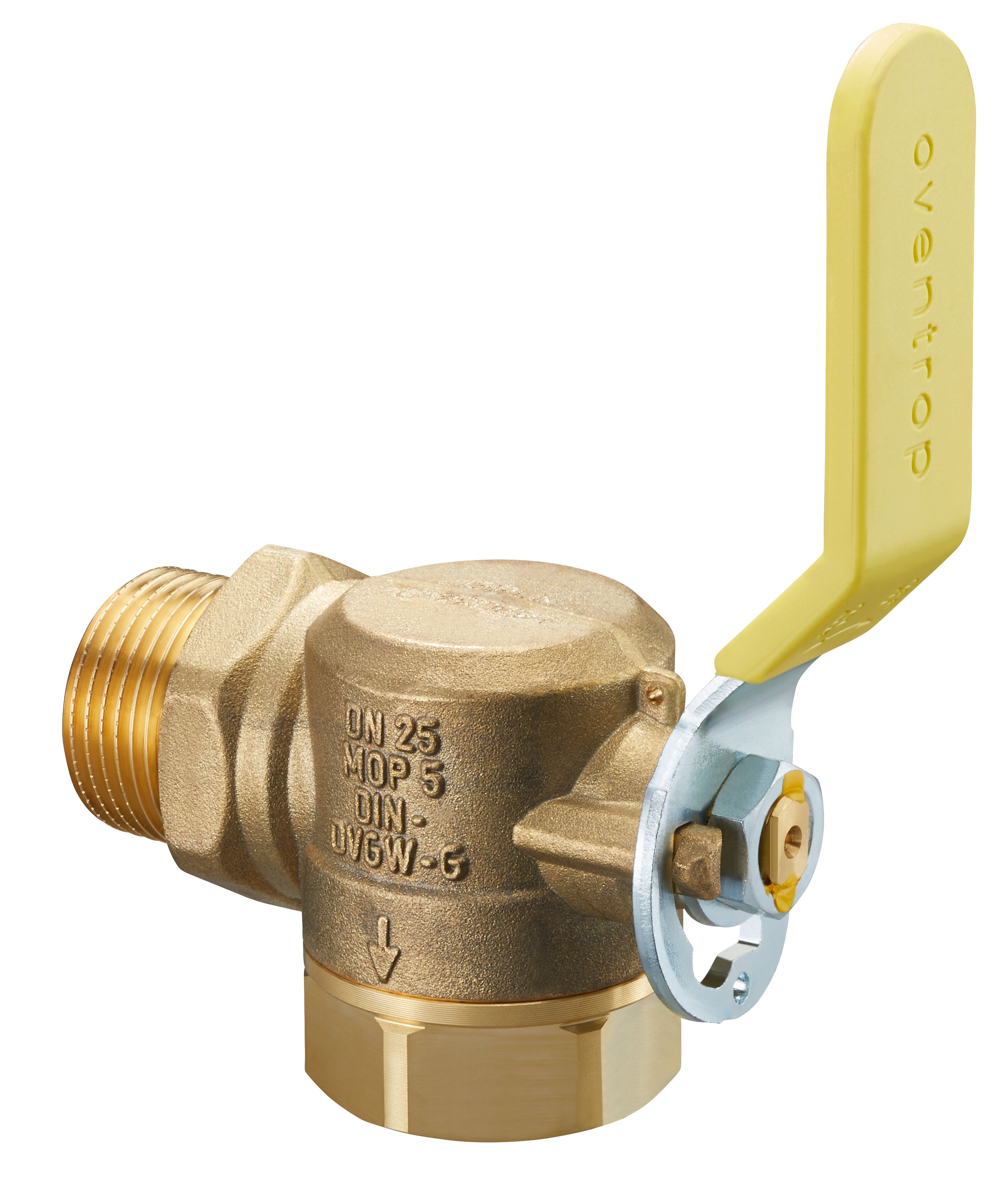

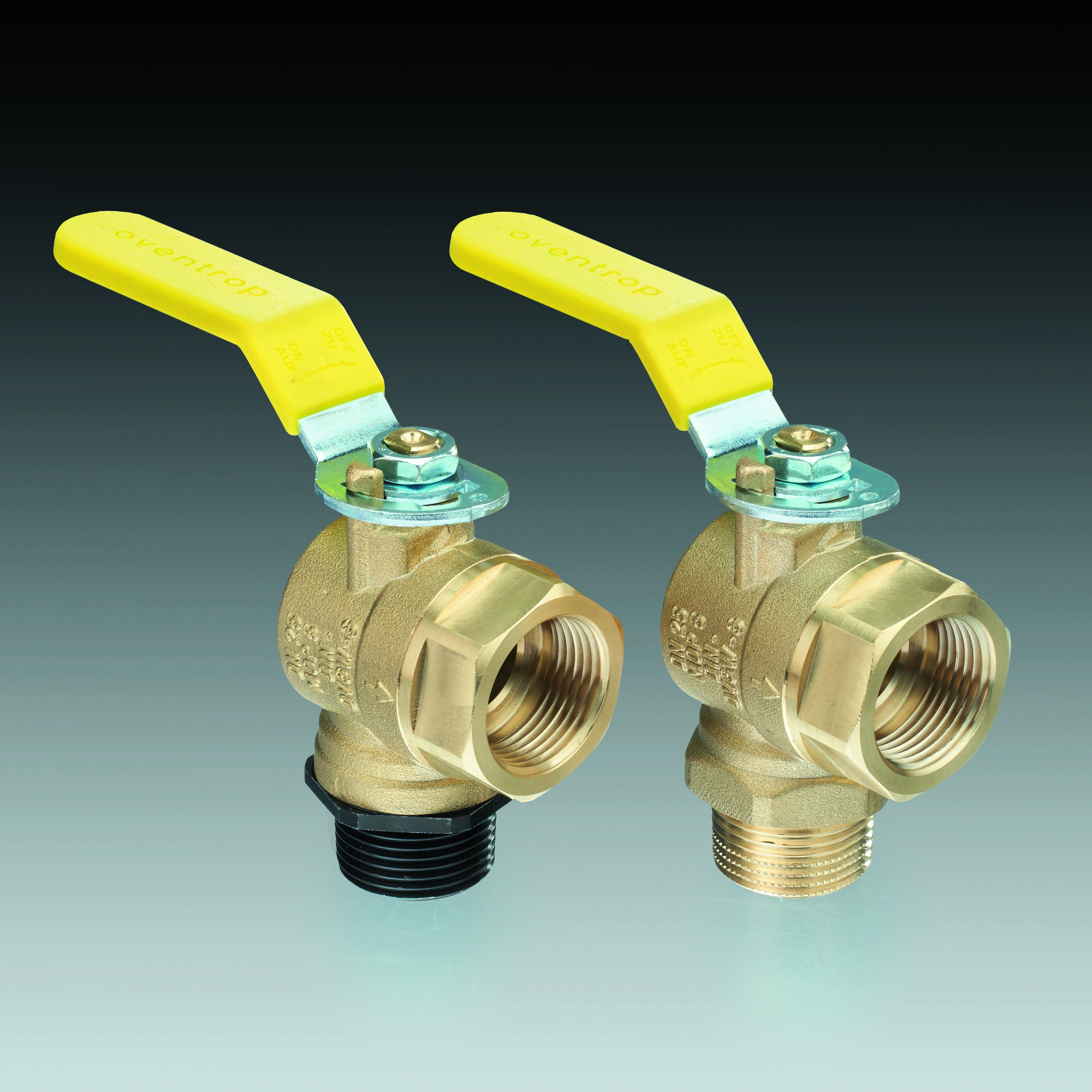

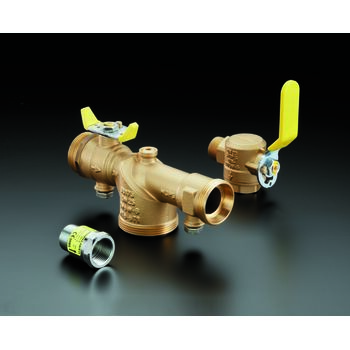

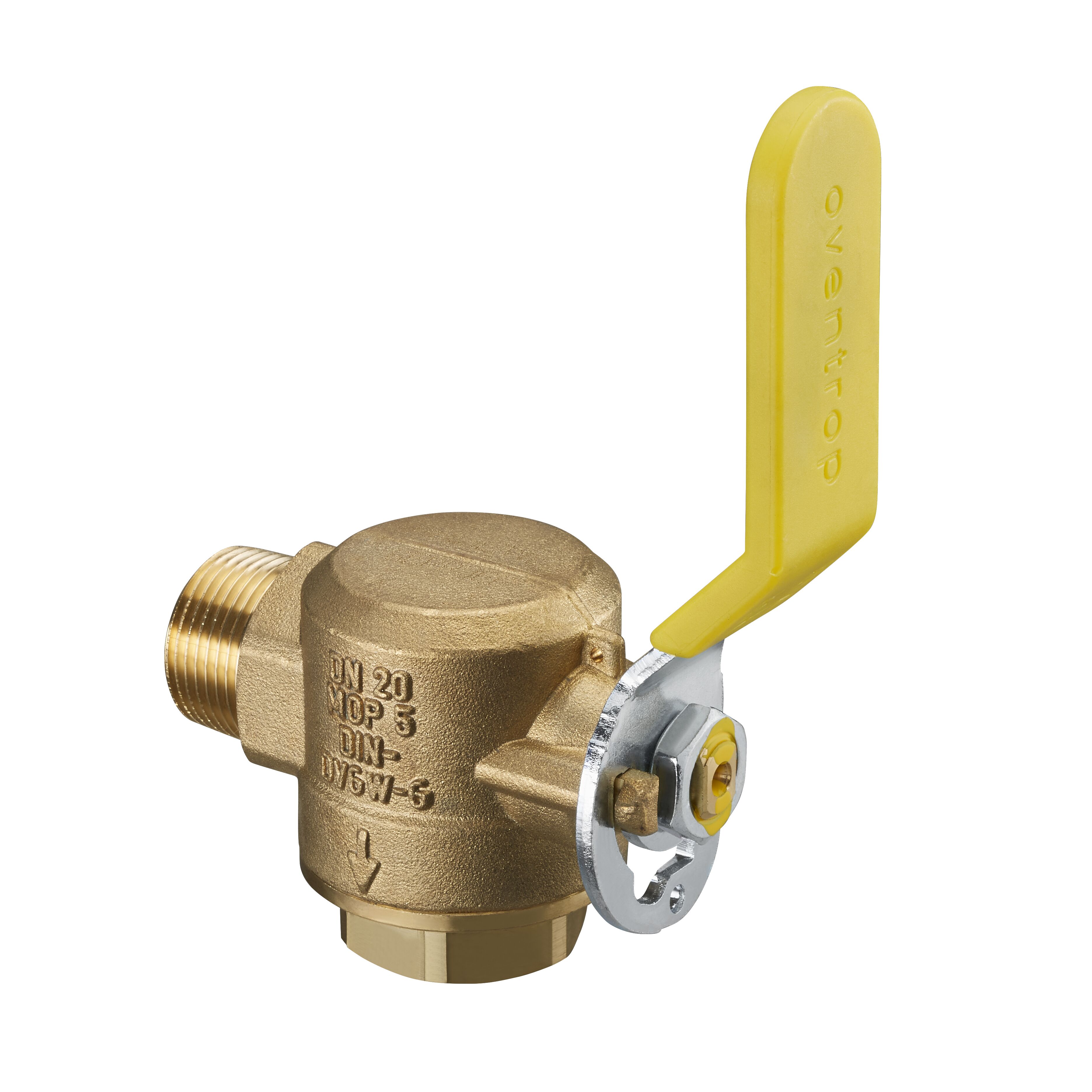

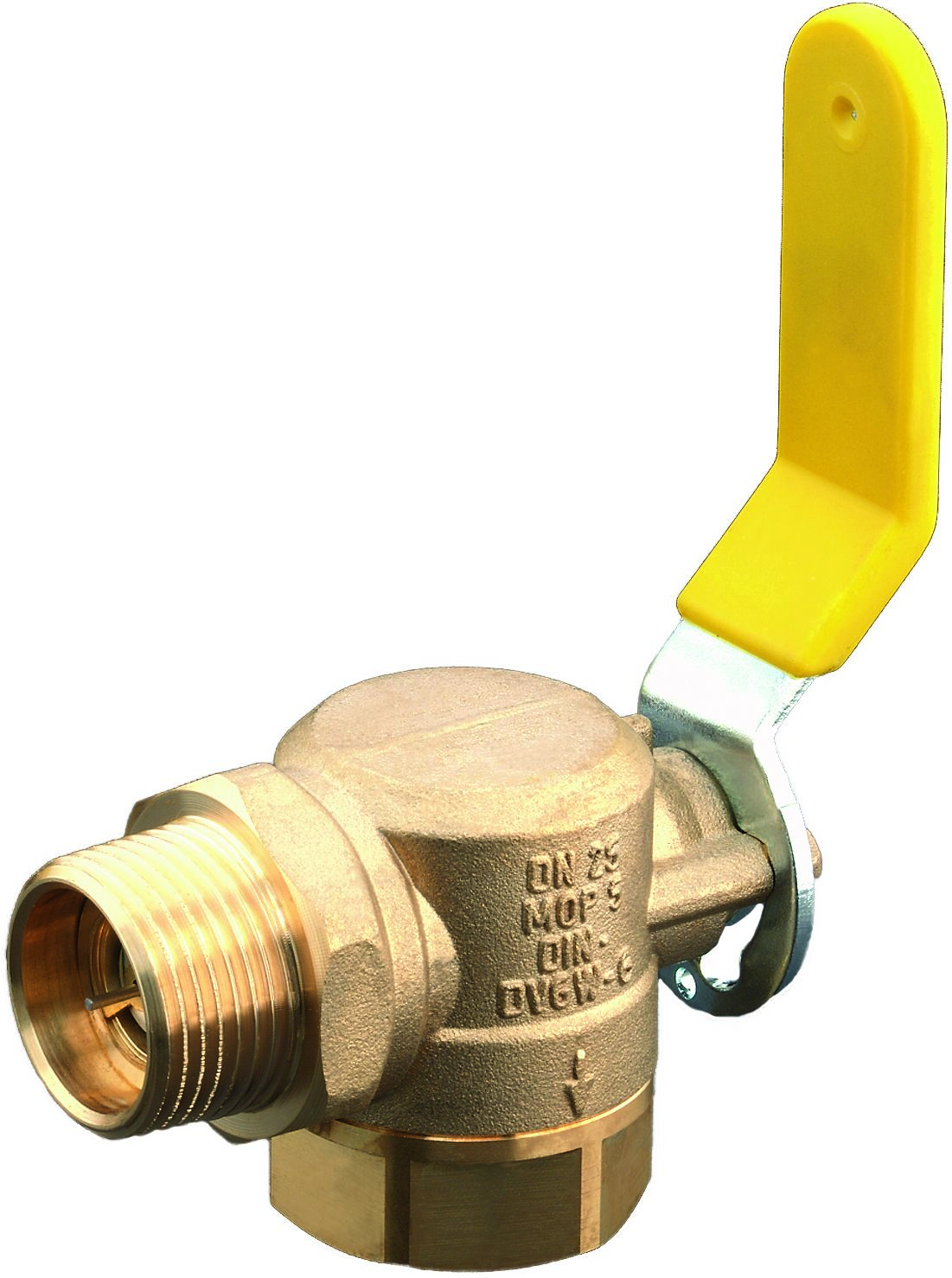

Product images

  File size
570,96 KB
  Size
2839 px x 3334 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
218,32 KB
  Size
1101 px x 1478 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
663,14 KB
  Size
3742 px x 3742 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
246,5 KB
  Size
2056 px x 2104 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
295,27 KB
  Size
1772 px x 1772 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
1,3 MB
  Size
4072 px x 4072 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
2,25 MB
  Size
4960 px x 3508 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
1,38 MB
  Size
3686 px x 2458 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
742,26 KB
  Size
2696 px x 2178 px
  Properties
  •  Clear product picture
  •  Cutout
Download

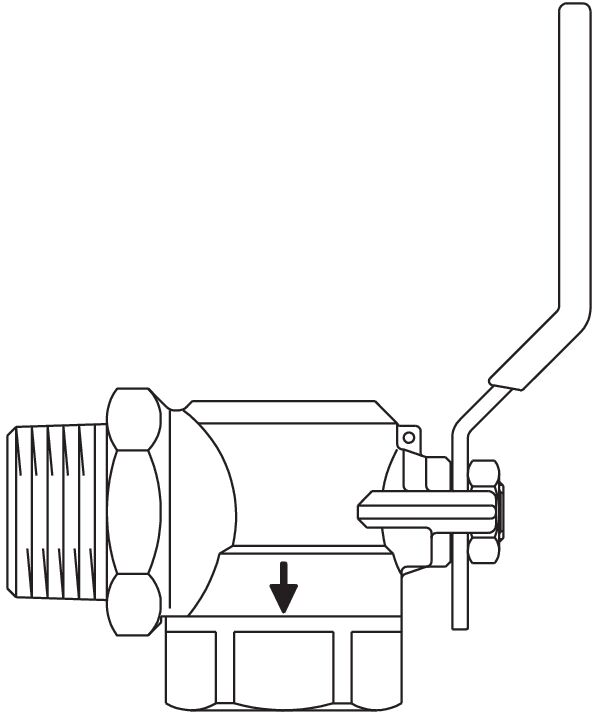

Drawings

  File size
24,36 KB
  Size
595 px x 713 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0
Property Value
Surface protection Untreated
Connection 1 Outer thread conical BSPT-R (ISO 7-1)
Connection 2 Inner thread conical BSPT-Rc (ISO 7-1)
Operation Lever handle
With interlocking
Right-angled model
Nominal inner diameter of connection 2 3/4 inch (20)
Handle/hand wheel height 34 mm
Length of handle/diameter of hand wheel 98 mm
Sealing unit
With connection 1 coupling
With connection 2 coupling
DVGW quality mark
Housing material Brass
Nominal inner diameter connection 1 3/4 inch (20)
EN 331 mark
