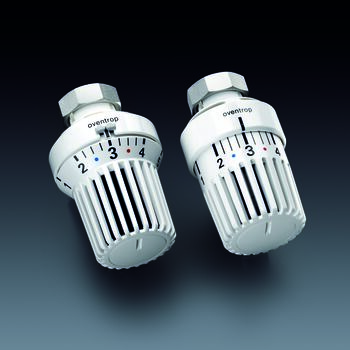

Thermostat "Uni LH"
8-38 °C, 1-7, liquid sensor, white


Thermostat “Uni LH”

for indoor swimming pools and health spa. With liquid sensor. Limitation and locking of individual nominal value. With memo disk. With frost protection. Tested and approved according to EN 215.

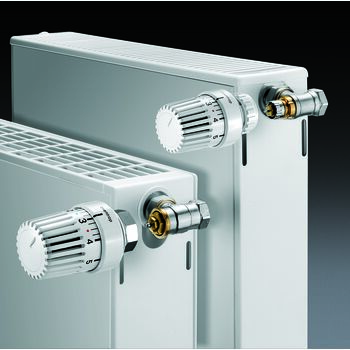

Suitable for valves with connection thread M 30 x 1.5 as well as integrated distributors with connection thread M 30 x 1.5 of the radiator manufacturers:

ARA, Arbonia, Caradon-Stelrad, Cetra, Concept, Dekatherm, Delta, Demrad, DiaNorm, Dia-therm, Dunaferr, DURA, Ferroli, Hagetec, Henrad, HM-Galant, Itemar/Biasi, Kaitherm, Kermi, Korado, Manaut, Purmo, Radson, Rettig, Starpan, Superia, VEHA, VSZ-Korad, Zehnder, Zehnder-Runtal, Zenith.

Temperature range 8-38°C
Graduation on cap 1-7
Without ‘0’ setting
Art.No.: 1011488
EAN: 4026755227758
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Actuators

Electrothermal actuator "Aktor T 2P" H NC, 230 V, closed with current "off", two point, M 30 x 1.5
Item no. 1012415
Electrothermal actuator "Aktor T 2P" "L NC", 24 V, closed with current "off", two point, M 30 x 1.5
Item no. 1012416
Electrothermal actuator "Aktor T 2P" "H NO", 230 V, opened with current "off", two point, M 30 x 1.5
Item no. 1012425
Electrothermal actuator "Aktor T 2P" L NO, 24 V, opened with current "off", two point, M 30 x 1.5
Item no. 1012426
Electrothermal actuator "Aktor T 2P" "H NC", 230 V, closed with current "off", two point, with auxiliary switch, M 30 x 1.5
Item no. 1012435
Electrothermal actuator "Aktor T 2P" L NC, 24 V, closed with current "off", cable 2 m long
Item no. 1012442
Electrothermal actuator "Aktor T 2P" "H NC", 230 V, closed with current "off", two point, cable 2 m long, M 30 x 1.5
Item no. 1012452
Electrothermal actuator "Aktor T 2P" "H NC", 230 V, closed with current "off", two point, cable 5 m long, M 30 x 1.5
Item no. 1012455
Electrothermal actuator "Aktor T 2P" H NC, 230 V, closed with current "off", cable 10 m long
Item no. 1012459
Electromotive actuator "Aktor M" 2P H, 230 V, two point, M 30 x 1.5
Item no. 1012710
Electromotive actuator "Aktor M" "2P L", 24 V, two point, M 30 x 1.5
Item no. 1012711
Electromotive actuator "Aktor M" "ST L", 24 V, modulating proportional actuator, 0-10 V, with fail-safe function and automatic recognitioin of neutral point, M 30 x 1,5
Item no. 1012717
Electromotive actuator Aktor M ST L, 24 V, 0-10 V actuator
Item no. 1012725
Electromotive actuator Aktor M ST L, 24 V, 0-10 V actuator, with position feedback
Item no. 1012726
Electromotive actuator actuator Aktor M 3P H, 230 V, three point actuator
Item no. 1012729
Electromotive actuator Aktor M Modbus L, 24 V, for Cocon QTZ
Item no. 1012745
Electromotive actuator Aktor M KNX
Item no. 1012746
Electrothermal actuator "Aktor T ST" "L NC", 24 V, closed with current "off", 0-10 V, with automatic recognition of neutral point and valve travel
Item no. 1012953
Electromotive actuator "Aktor M ST L Modbus", 24 V, for "Cocon QTR/QFC" DN 40 and DN 50
Item no. 1158014

Dimensions

Dimensions of article

Length Width Height Weight
54 mm 54 mm 87 mm 0,16 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 57 mm 57 mm 95 mm 0,17 kg
Carton 10 280 mm 115 mm 95 mm 1,73 kg

Images

Product images

  File size
238,53 KB
  Size
2122 px x 1464 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
21,9 KB
  Size
496 px x 348 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
43,02 KB
  Size
709 px x 709 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
120,72 KB
  Size
709 px x 709 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
504,53 KB
  Size
1561 px x 2327 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
598,34 KB
  Size
3486 px x 3486 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
82,84 KB
  Size
827 px x 1063 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
1,07 MB
  Size
2914 px x 2953 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
230,69 KB
  Size
1030 px x 1080 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
80,48 KB
  Size
661 px x 661 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
665,88 KB
  Size
3486 px x 3486 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
211,46 KB
  Size
1063 px x 1002 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
91,69 KB
  Size
678 px x 678 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
2,08 MB
  Size
3810 px x 3044 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
1,17 MB
  Size
6449 px x 5031 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
411,2 KB
  Size
3368 px x 2512 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
364,45 KB
  Size
2128 px x 2128 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
200,99 KB
  Size
1039 px x 1134 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
100,33 KB
  Size
827 px x 1063 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
2,4 MB
  Size
3492 px x 4142 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
162,34 KB
  Size
1132 px x 1127 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
77,48 KB
  Size
680 px x 540 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
515,83 KB
  Size
2327 px x 2327 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
204,79 KB
  Size
1260 px x 1235 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
448,09 KB
  Size
1417 px x 1853 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
1,53 MB
  Size
3013 px x 3390 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
1,13 MB
  Size
2017 px x 2008 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
342,83 KB
  Size
2196 px x 2196 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
7,61 MB
  Size
3560 px x 4549 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
126,91 KB
  Size
676 px x 674 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
3,16 MB
  Size
3526 px x 4509 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
749,27 KB
  Size
1417 px x 1432 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
69,09 KB
  Size
660 px x 920 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
52,78 KB
  Size
832 px x 755 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
1,47 MB
  Size
4843 px x 4627 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
58,71 KB
  Size
595 px x 938 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0 EC010064
Radiator thermostat button
Property Value
Colour White
Model Straight
RAL-number 9016
Adjustment range 8 - 38
Remote operation
Vandal proof
Programme clock
Adjustment element Liquid-filled
Remote sensor
Frost protected
Mechanically sealable at zero position
Connection to radiator stop valve M30 x 1.5
Blocking/limiting adjustment range
Length of remote capillary sensor 0 m
Length of remote capillary control element 0 m
Remote sensor diameter 0 mm
Length of remote sensor 0 mm
Suitable for valve compact radiator
With anti-theft security
