Bridging fitting
DN 20, G ¾ M, 50 mm


Bridging fitting

For bridging-over the supply and the return pipe in case of subsequent installation of radiators.

DN 20, G ¾ M, distance between pipe centres 50 mm
Art.No.: 1016452
EAN: 4026755117257
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
76 mm 31 mm 26 mm 0,14 kg

Packing units

Type Qty. Length Width Height Weight
Bag 1 76 mm 31 mm 30 mm 0,14 kg
Carton 10 200 mm 120 mm 98 mm 1,48 kg

Images

Product images

  File size
380,84 KB
  Size
2532 px x 1572 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
471,49 KB
  Size
3600 px x 3600 px
  Properties
  •  Clear product picture
  •  Cutout
Download

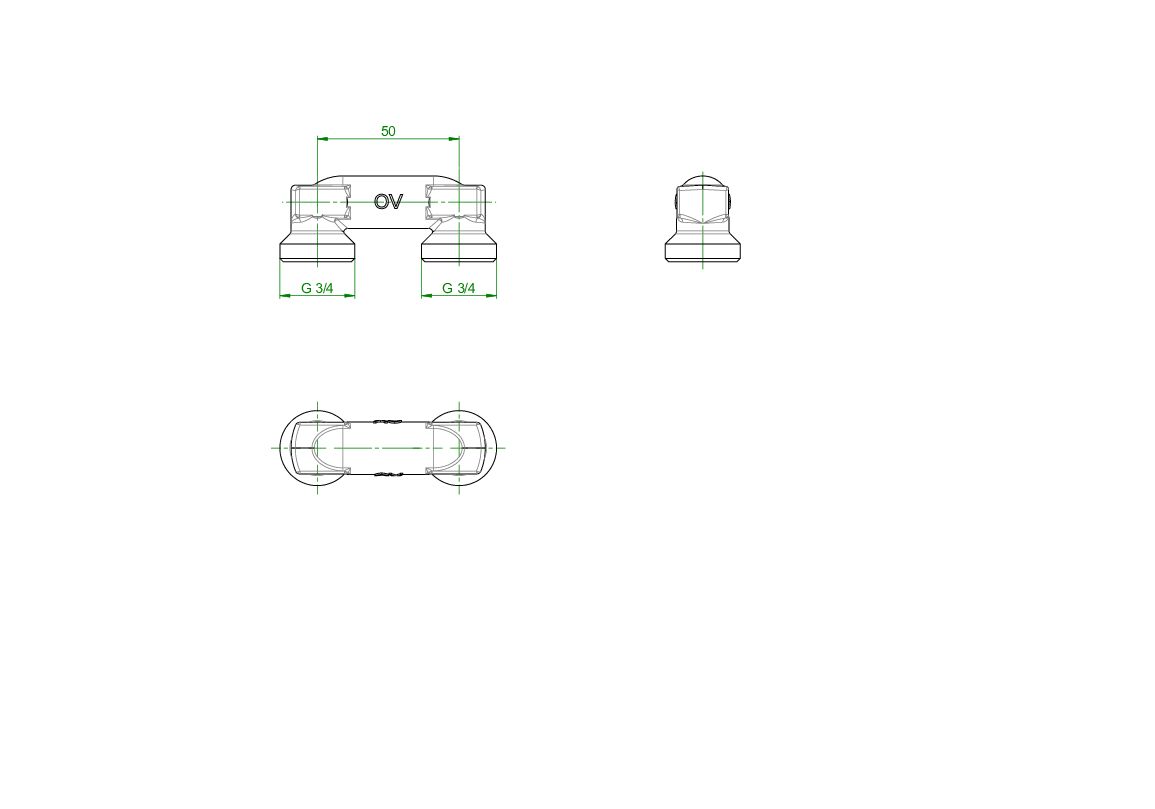

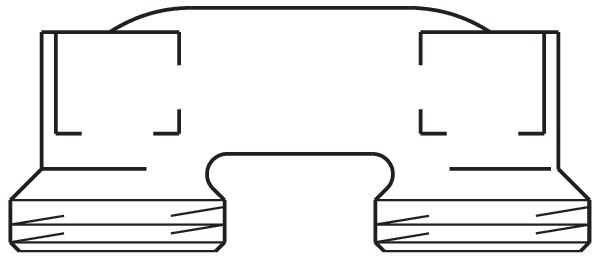

Drawings

  File size
14,1 KB
  Size
595 px x 260 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Technical data

  Name Size
db_1016241_1_en.pdf 2,63 MB

ETIM

Klassifizierung
ETIM 7.0 EC010077
Bottom H-block
Property Value
Lockable
Surface protection Nickel-plated
Material Brass
Adjustable
Suitable for single pipe system
Suitable for two pipe system
Centre distance, supply / return 50 mm
Connection direction towards wall (square)
Connection direction towards floor (straight)
Size of pipe connection 3/4 inch face-sealing
Suitable for filling/drain tap
Four-way supply/return connection
Size of radiator connection Other
Self-controlling
Thermostatically prepared
