Aktor M Motorised actuator, modulating with 0 - 10 V or on/off control 24 V AC / DC, additionally also for floating operation, squeeze connection

Description Dimensions Images Documents ETIM

Aktor M Motorised actuator, modulating with 0 - 10 V or on/off control
24 V AC / DC, additionally also for floating operation, squeeze connection

Motorized actuators are used for heating, ventilation and air conditioning. Amongst others, the actuators can be used for room temperature control. They can be used, for example, with conventional radiators, radiators with integrated valve sets, heating circuit manifolds (except for item no. 1012710 / 11), radiant heating ceilings, cooling ceilings and induction units.

Oventrop offers motorized actuators with and without communication interfaces.

Art.No.: 1158012
EAN: 4026755468717
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Download GAEB

Download tender text

Dimensions

Dimensions of article

Length	Width	Height	Weight
248 mm	178 mm	437 mm	0,42 kg

Packing units

Type	Qty.	Length	Width	Height	Weight
Carton	1	190 mm	185 mm	144 mm	0,45 kg
Unknown	120	1200 mm	800 mm	950 mm	133,88 kg

Images

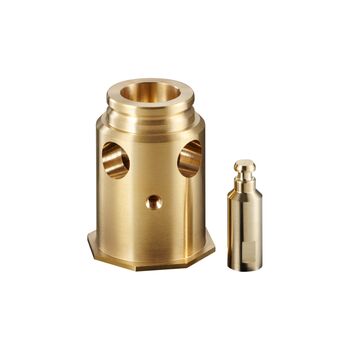

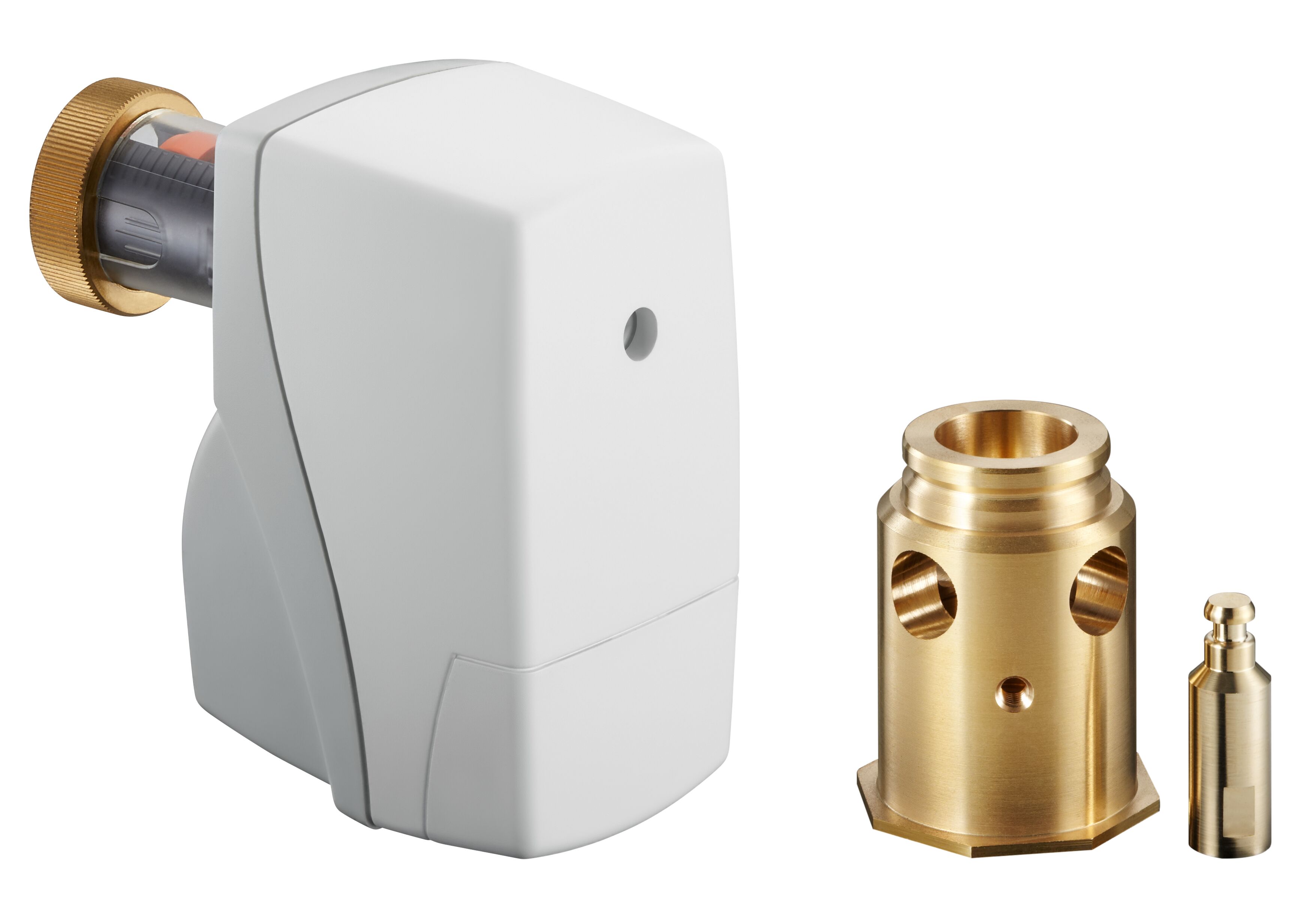

Product images

File size

291,71 KB

Size

3511 px x 2407 px

Properties

Clear product picture
Cutout

Download

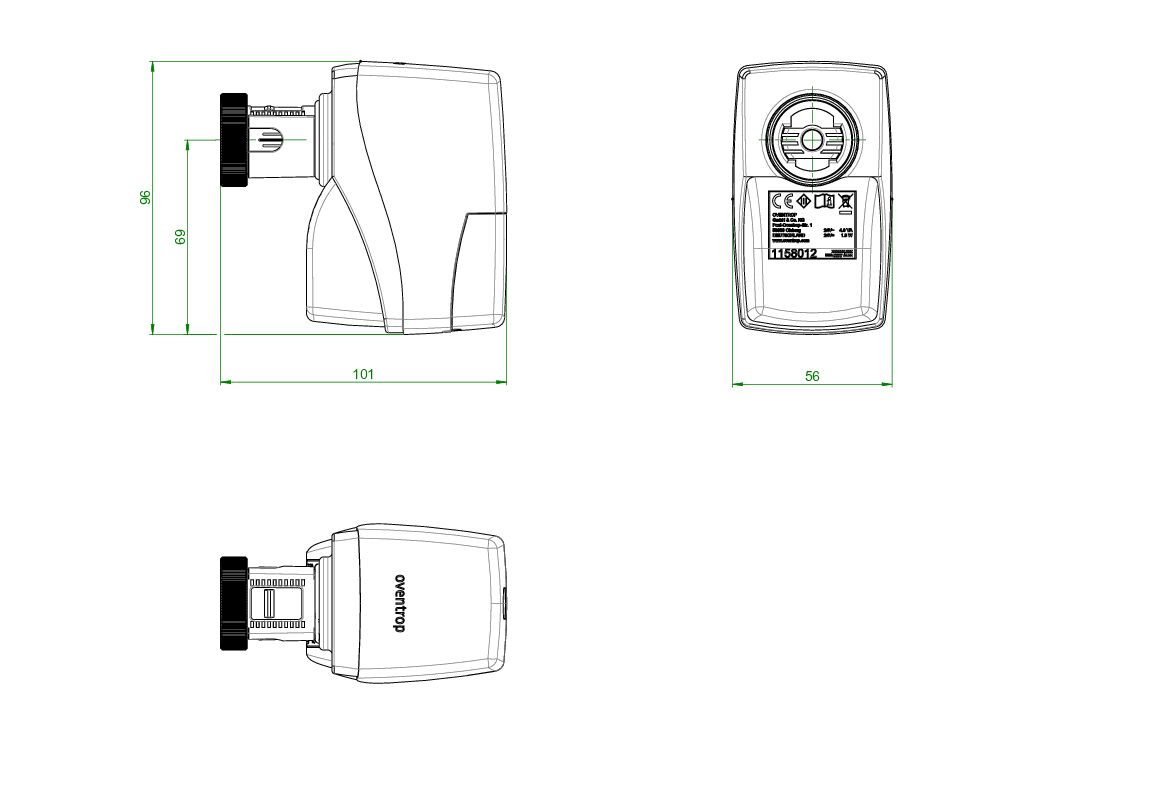

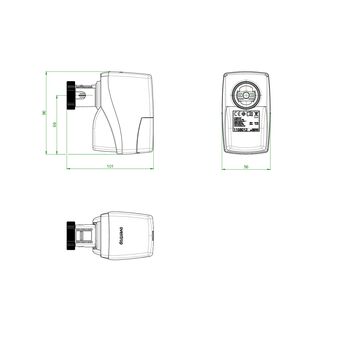

Dimensional drawings

File size

44,2 KB

Size

1155 px x 809 px

Properties

Clear product picture
Cutout

Download

Documents

Manual

	Name	Size
	L_115801281.pdf more languages L_115801281.pdf Einbauanleitung für Adapter	643,09 KB
	L_115801284.pdf	2,47 MB

Technical data

	Name	Size
	Cocon QTR Technical information more languages Cocon QTR Information technique Cocon QTR Datenblatt Cocon QTR PN25 Ficha de datos Cocon QTR Спецификация Cocon QTR Технические данные Cocon QTR Scheda tecnica Kombinovaný regulační ventil „Cocon QTR“ Cocon QTR Data sheet	1,99 MB
	Aktor M ST L motorised actuators more languages Aktor M ST L Servo-moteurs Aktor M motorischer Stellantrieb Aktor M - Fișă tehnică Aktor M Datablad Aktor M ST L motorised actuators	632,13 KB

Brochure

	Name	Size
	Thermostats, valves and fittings for radiators more languages Thermostats et robinetterie pour radiateurs Thermostate und Armaturen für Heizkörper Termostatos, válvulas y racores para radiadores Термостаты и арматура для отопительных приборов Thermostaten en appendages voor radiatoren Thermostaty i armatura grzejnikowa p_radiator_valves_bg.pdf Termostate, ventile şi racorduri pentru radiatoare Termostati, valvole e raccordi per radiatori Termostaty a armatury pro otopná tělesa Fűtőtestszerelvények és -termosztátok Termékismertető Термостати, клапани та фітинги для радіаторів	3,15 MB

Declaration of conformity

	Name	Size
	Aktor M ST/2P/3P L EU Declaration of Conformity more languages Aktor M ST/2P/3P L EU Konformitätserklärung Aktor M ST/2P/3P L EU Declaration of Conformity	347,27 KB

ETIM

Klassifizierung
ETIM 7.0

Property	Value
Control signal	0-10 V
Ambient temperature	0 - 55
Length of connection cable	1.5
Degree of protection (IP)	IP54
Stroke length	10
Suitable for valve
Supply voltage	24 V AC/DC
Adjusting force	500
