Connection set for towel radiators
Multiblock T/Uni SH, angle pattern, chrome plated


Connection set "Multiblock T"/"Uni SH" for towel radiators

for use on radiators with supply and return pipe connection. Distance between pipe centres 50 mm. Marking "OV 2" on valve body.

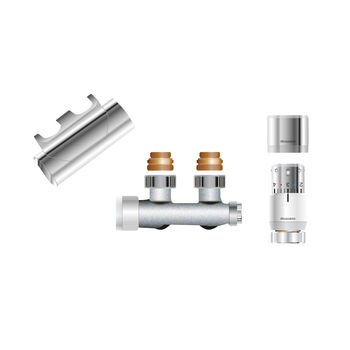

Consisting of: -"Multiblock T" two pipe fitting, angle pattern with presetting -Design cover, angle pattern -"Uni SH" Thermostat with connection thread M 30 x 1.5 -"SH-Cap"

To be used: as thermostatic valve for two pipe operation, as isolating fitting, for draining and filling. With '0' setting. Temperature range: 7-28 °C Graduation on cap: 0 ☼ 1-5
Art.No.: 1184284
EAN: 4026755315004
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
130 mm 85 mm 100 mm 0,78 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 135 mm 90 mm 105 mm 0,84 kg
Carton 12 380 mm 295 mm 215 mm 10,44 kg

Images

Product images

  File size
679,98 KB
  Size
5871 px x 5870 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
432,14 KB
  Size
3745 px x 3745 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
1,1 MB
  Size
3745 px x 3745 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
1,4 MB
  Size
5871 px x 5870 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
14,59 KB
  Size
459 px x 368 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
73,01 KB
  Size
1575 px x 997 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
1,23 MB
  Size
3589 px x 3163 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
65,28 KB
  Size
596 px x 637 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
22,47 KB
  Size
415 px x 492 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Manual

  Name Size
L_118401381.pdf 4,12 MB

ETIM

Klassifizierung
ETIM 7.0 EC011296
Radiator connection combination for decor radiator
Property Value
Colour Chrome-look
Type Radiator valve/foot valve
Connection direction, pipes Towards wall
Suitable for single pipe system
Suitable for two pipe system
Centre-to-centre distance 50 mm
Control element H, support block right
Control element H, support block left
Controllable
Size of pipe connection 3/4 inch Euro conus
Suitable for filling/drain tap
Size of radiator connection 1/2 inch
Radiator valve preset
With thermostat button
With design cover
