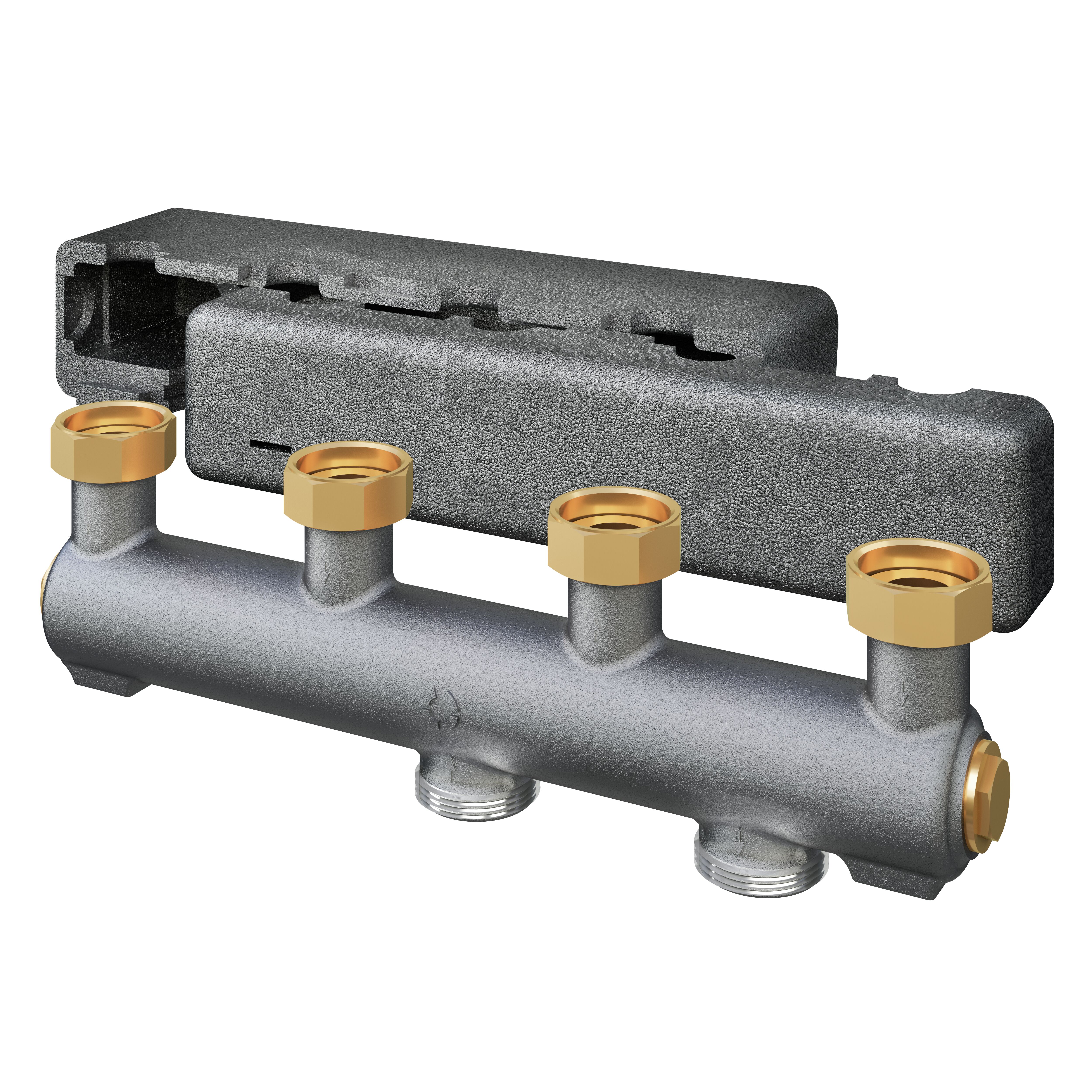

Distributor for Regumat DN 25
with thermal insulation, for 2 heating circuits, cast iron


For mounting Regumat stations. For volume flow distribution, e.g. from the heat generator to several heating circuits.

The distributors are characterised by a simple and space-saving installation.

  • Heating circuits: 2
  • Connection heating circuit: G 1 1/2 union nut, flat sealing
  • Connection heat generator: G 1 1/2 external thread flat sealing
  • Centre distance: 125 mm
  • Body material: Cast iron
  • Thermal insulation: Yes
  • Material thermal insulation: Expanded polypropylene (EPP)
  • Wall bracket: No
  • Max. flow rate: 4 m³/h
  • Recommended application  (∆T = 20K, ∆p = 100 mbar): 95 kW
  • Max. operating temperature: 110 °C
  • Max. operating pressure: 4 bar
New in the programme
Art.-Nr.: 1351570
EAN: 4026755497991
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes

Dimensions

Dimensions of article

Length Width Height Weight
498 mm 191 mm 130 mm 5,71 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 500 mm 190 mm 200 mm 0 kg
