OKF Roof hooks for pan tiled roofs
stainless steel, set = 4 roof hooks

OKP roof hooks made of stainless steel

For pantile roofing, basic set = 4 roof hooks

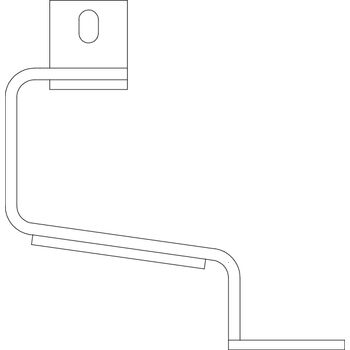

Roof hooks for screwing to the side rails. Heavy-duty and torsion-resistant roof hook. The side rails of the vacuum tube collector can be screwed to the roof hooks easily accessible from the side.

The maximum permissible span of the roof hooks depends on the corresponding snow and wind load zone. It refers to each individual collector installed. Calculations according to DIN 1055- 4 and DIN 1055 - 5. Please contact Oventrop for higher loads. A prerequisite for the intended use is always a suitable mounting surface that can absorb the forces that occur (weight, wind and snow load).
No longer produced
Art.No.: 1361260
EAN: 4026755350739
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.


Dimensions of article

Length Width Height Weight
186 mm 220 mm 165 mm 3,75 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 250 mm 215 mm 175 mm 4,02 kg


Product images

  File size
256,16 KB
2624 px x 3024 px
  •  Clear product picture
  •  Cutout


  File size
10,65 KB
596 px x 613 px
  •  Clear product picture
  •  Cutout


ETIM 7.0
Property Value
With mounting plate
Material Stainless steel
Roofing material Pan
Bracing Screwing
Orientation Horizontal/vertical
Hook width 35 mm
Material thickness hook 6 mm
Suitable for pitched roof mounting
Roof perforation necessary
Width mounting plate 150 mm
Length of mounting plate 60 mm
