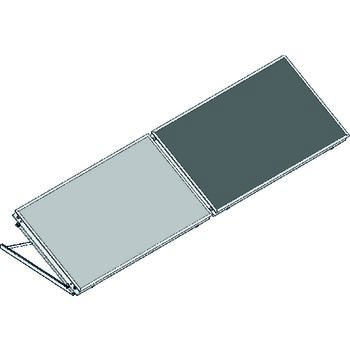

Extension set for freestanding installation "OKF-MQ25"
for each additional collector for horizontal installation side by side


Freestanding installation "OKF-MQ25"

Extension set for each additional collector for horizontal installation side by side.

A basic set is required for the installation of an extension set. A collector coupling with O-ring is included.
to be discontinued
Art.No.: 1361487
EAN: 4026755415285
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
2200 mm 180 mm 42 mm 5,78 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 2233 mm 187 mm 106 mm 6,9 kg

Images

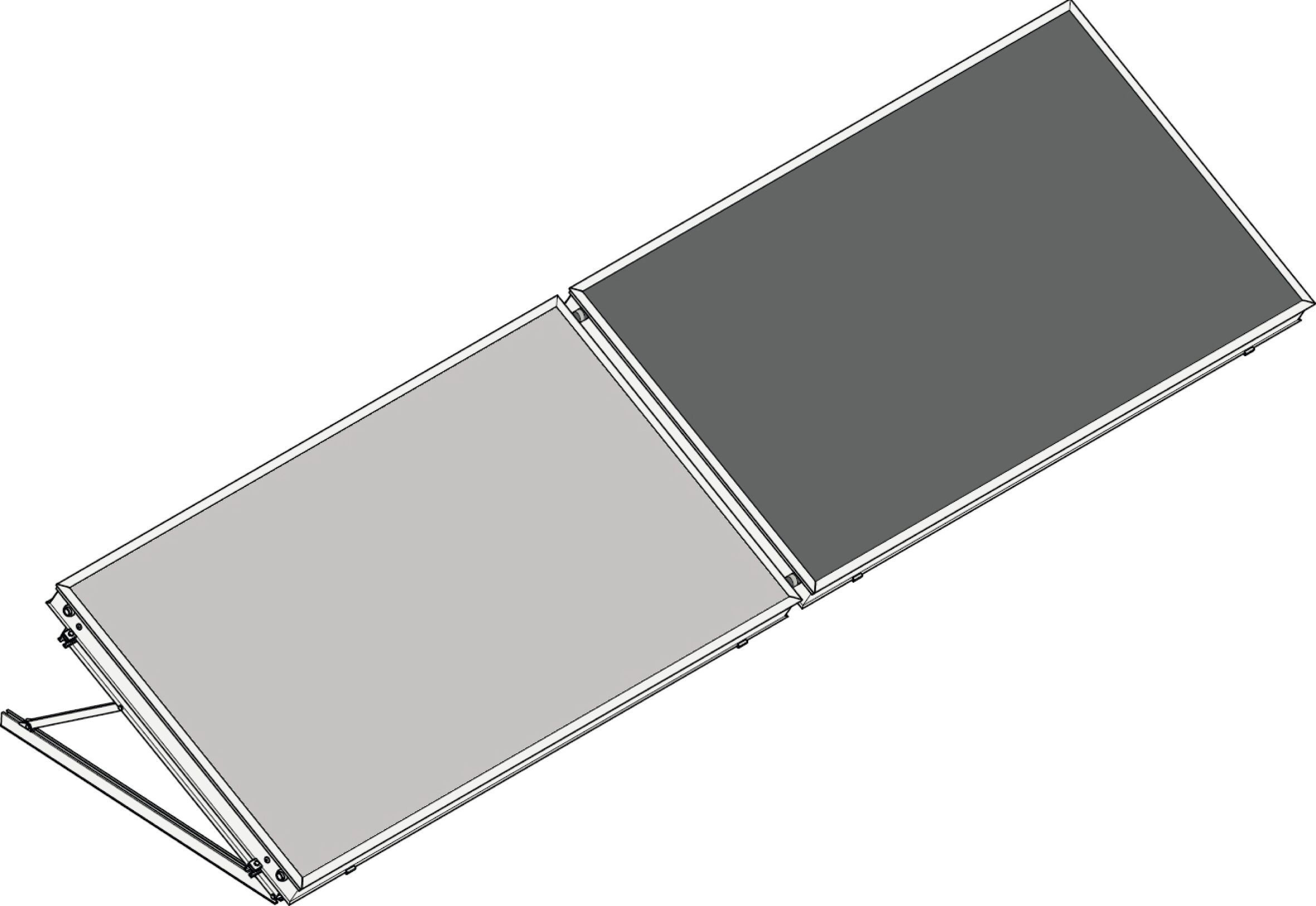

Product images

  File size
144,32 KB
  Size
2362 px x 1626 px
  Properties
  •  Clear product picture
  •  Cutout
Download

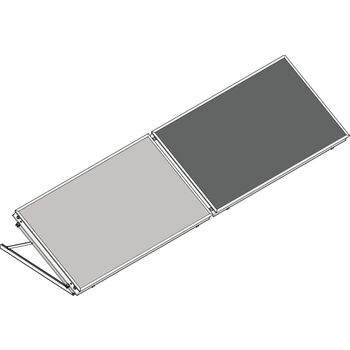

Drawings

  File size
33,86 KB
  Size
567 px x 390 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Technical data

ETIM

Klassifizierung
ETIM 7.0 EC001236
Solar mounting frame
Property Value
Width 2215 mm
Height 908 mm
Depth 1234 mm
Suitable for Flat collector
Material Aluminium
