Tank filling limiter according to TRbF 511
G 1½, with mechanical level indicator, 385 mm, 5 m cable


Tank filling limiter with cable for wall installation

according to TRbF 511 for EL type of heating oil, diesel oil, fatty acid methyl esters (FAME) as heating and diesel oil, mixtures of heating oil/diesel oil with FAME and/or vegetable oils.

With mechanical level indicator, infinitely adjustable for storage basins/tanks with depths between 100 and 200 cm

For -storage basins according to DIN 6620 -storage basins according to DIN 6625 (height 1-2 m) -battery storage basins made of plastic with general construction approval, for installation of up to 25 individual storage basins in series -tanks made of thermoplastics according to DIN EN 12573, parts 1-3 -tanks made of thermoplastics according to DIN EN 13341, parts 1-3 -GFK tanks and storage basins above ground level according to DIN EN 13121, parts 1-3

Lenght of cable: 5 m Probe length: 385 mm Screw-in fitting: G 1½
to be discontinued
Art.No.: 2130512
EAN: 4026755152777
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
595 mm 90 mm 85 mm 0,62 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 595 mm 90 mm 85 mm 0,77 kg

Images

Product images

  File size
492,21 KB
  Size
5504 px x 5504 px
  Properties
  •  Clear product picture
  •  Cutout
Download

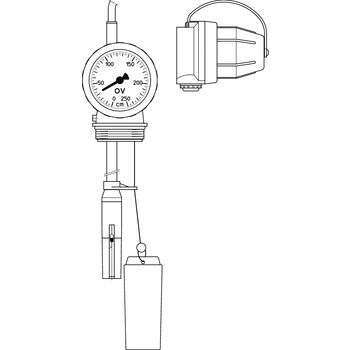

Drawings

  File size
72,75 KB
  Size
525 px x 981 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
9,28 KB
  Size
240 px x 333 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Declaration of conformity

ETIM

Klassifizierung
ETIM 7.0 EC011652
Accessories/spare parts for liquids filter
Property Value
