Circulation station
Regucirc B, DN 20, G 1 M x M

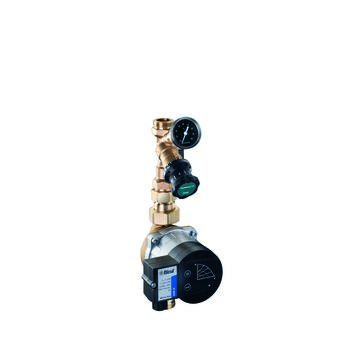

Circulation station "Regucirc B"

Compact circulation pump group for use in detached or semi-detached houses, consisiting of an energy-saving high-efficiency pump, a non-return check valve, a thermostatic valve "Aquastrom VT" and a control thermometer

The pump electronics with integrated anti-blocking programme avoids stucking of the motor rotor.

Mains connection: 1 x 230-240 V +6/-10 % 50/60 Hz Power consumption: 5–22 W Max. pump head: 1.8 m Max. pump capacity: 1.4 m³/h Max. fluid temperature: +15 °C - +110 °C Sound pressure level: < 43 dB(A) Protection: IP44

Both ports G 1 male thread.

Insulation shell made of EPP according to the Energy Saving Directive (EnEV) Fire protection class B 1
Art.No.: 4206776
EAN: 4026755369847
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
420 mm 200 mm 210 mm 3,95 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 420 mm 200 mm 210 mm 4,39 kg
Europallet 30 1200 mm 800 mm 145 mm 139,38 kg

Images

Product images

  File size
3,54 MB
  Size
5334 px x 6820 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
127,66 KB
  Size
1351 px x 1772 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
1,22 MB
  Size
4522 px x 4522 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
1,74 MB
  Size
3233 px x 4134 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
181,95 KB
  Size
1351 px x 1772 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
5,26 MB
  Size
5334 px x 6820 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
376,83 KB
  Size
1772 px x 1772 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
66,28 KB
  Size
595 px x 1318 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Technical data

Brochure

  Name Size
p_water_valves_pt.pdf 1,43 MB
p_regucirc_pt.pdf 1017,24 KB

Manual

  Name Size
420677680.pdf 1,48 MB
420670480.pdf 3,67 MB

ETIM

Klassifizierung
ETIM 7.0 EC011516
Thermostatic flow control valve, hot tap water
Property Value
With thermometer
Article compression class PN 10
KIWA certified
With drain
With measuring connector
Setting can be locked
With thermometer connection
Temperature setting range 50 - 65
Min. flow
Disinfection function Thermostatic expansion module
With connection 2 coupling
Housing material Bronze
With position indicator
With measuring nipples
Nominal inner diameter DN 20
