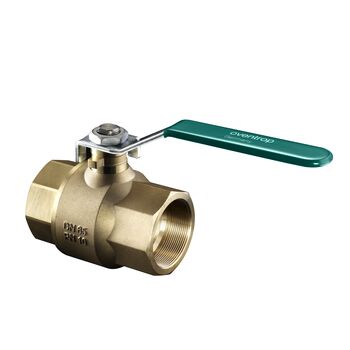

Ball valve for potable water "Optibal TW" with lever made of galvanised steel
DN 65, Rp 2½ F x Rp 2½ F, bronze


"Optibal TW" Ball valve for potable water

full flow according to EN 13828, both ports female thread according to EN 10226-1, with lever made of galvanised steel, without draining orifice.

Bronze body, ball made of chrome plated brass, without dead zone, ball always surrounded by water.

Sound absorbing according to DIN EN ISO 3822 product group I.

DVGW and VA certified.
Art.No.: 4208820
EAN: 4026755363357
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
335 mm 114 mm 180 mm 4,62 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 330 mm 185 mm 240 mm 4,93 kg

CAD

Notice for CAD viewer

In order to open the CAD-Viewer and Download CAD-Data please onetime download and install the CAD-App.

Images

Product images

  File size
530,47 KB
  Size
3860 px x 3860 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
654,71 KB
  Size
3860 px x 3860 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
31,52 KB
  Size
595 px x 364 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Technical data

Declaration of conformity

ETIM

Klassifizierung
ETIM 7.0 EC011343
Ball valve
Property Value
Model Straight
Surface protection Untreated
Material quality Bronze (Rg 5)
Operation Lever handle
Article compression class PN 10
Max. medium temperature (continuous) 90 °C
Nominal inner diameter of connection 2 DN 65
KIWA certified
Permitted by NCP
Min. medium temperature (continuous) 0 °C
Flange compression class PN 10
Angle of the valve 0 °
Housing construction 2-part
Full bore
Handle height 131 mm
Handgrip length 252 mm
FM quality mark
VdS quality mark
UL quality mark
ULC quality mark
LPCB quality mark
Fire-safe
DVGW quality mark
Housing material Bronze
Spindle material Bronze
Medically clean
Nominal inner diameter connection 1 DN 65
Grease-free
Material ball seal Polytetrafluoroethylene (PTFE)
Material ball Brass
Primary spindle seal material Ethylene-propylene diene monomer rubber (EPDM)
Secondary spindle seal material Ethylene-propylene diene monomer rubber (EPDM)
