Regumat

How to control the heating of tomorrow?
That is quite simple with our modular solutions.

Together we solve today the challenges of tomorrow. As a partner at your side we support you. With our modular and pioneering system solutions, you are flexible and well positioned for the future. Even if the requirements change tomorrow. Our stations and storage cylinders are matched to our pioneering hydraulic and room climate solutions. So that you can plan reliably and systematically.

Flexible and reliable heating with our stations
Oventrop are the reliable “control centre” in heating systems. Like our Regumat stations for heating circuits and our Regumat stations for solid fuel boilers: The connection groups are made of brass or bronze and are very durable. Therefore, you can be sure that everything will work perfectly, for a long time. A groundbreaking feature is that you can extend the system modularly, for example by adding a heating circuit controller.

Time-saving installation, as pre-assembled

Space-saving installation due to compact design

High functional reliability due to maintenance-free components and high quality materials

Simple modular extension with accessories

Regumat S

Regumat S stations
for unmixed heating circuits

with these stations you connect an unmixed heating circuit.
The stations contain all components you need to connect the heat generator, pump and pipework. With the Regumat S stations you can shut off the heating circuit on the supply and the return side. You can change the supply and return individually on site.
the stations consist of:
  • a shutoff device with two ball valves to shut off the heating circuit
  • two thermometers integrated in the handles to display the flow and return temperature
  • a check valve to prevent incorrect circulation
  • a thermal insulation

Depending on the version, a pump ball valve is also included. This makes it easy for you to change the pump, because you do not have to drain the system parts.

Regumat M3 stations
for mixed heating circuits

with these stations you connect a mixed heating circuit.
The stations contain all components you need to connect the heat generator, pump and pipework. With the Regumat M3 stations you can shut off the heating circuit on the supply and return side. You can change the supply and return individually on site.

the stations consist of:
  • a shutoff device with two ball valves to shut off the heating circuit
  • two thermometers integrated in the handles to display the flow and return temperature
  • a check valve to prevent incorrect circulation
  • a three-way mixing valve with actuator
  • a thermal insulation

Depending on the version, a pump ball valve is also included. This makes it easy for you to change the pump, because you do not have to drain system parts.

Regumat M3 DN 25 and Regumat M3 DN 25 - compact design:
three-way mixing valve with actuator
  • Optimum control accuracy due to equal-percentage mixing of the volume flows
  • No temperature fluctuations with changing volume flows in partial load operation
Regumat M3
Regumat F

Regumat F stations
for heating circuits with fixed value control

with these stations you connect a thermally controlled heating circuit.
The stations control and limit the flow temperature in combined radiator/surface heating systems. The stations contain all components you need to connect the heat generator, pump and pipework. With the Regumat F stations you can shut off the heating circuit on the supply and return side.

the stations consist of:
  • a shutoff device with two ball valves to shut off the heating circuit
  • two thermometers integrated in the handles to display the flow and return temperature
  • a check valve to prevent incorrect circulation
  • a three-way mixing valve with temperature controller
  • a thermal insulation

Depending on the version, a pump ball valve is also included. This makes it easy for you to change the pump, because you do not have to drain system parts.

Regumat RTA stations
for solid fuel boilers

With these stations you connect a solid fuel boiler.
The return temperature to the solid fuel boiler is at least approx. 55°C and thus above the dew point. It prevents condensate tar formation. During start-up mode, the boiler circuit is short circuited. Hot supply water is fed to the return flow via the bypass. When the return temperature of 55 °C is reached, the mixing valve opens.

the stations consist of:
  • a shutoff device with two ball valves
  • two thermometers integrated in the handles to display the supply and return temperature
  • a check valve to prevent incorrect circulation
  • a three-way mixing valve with temperature controller
  • a thermal insulation
Regumat RTA

Modular accessories
Clever combination

Wärmeübertrager mit Sicherheits­gruppenset
  • Heat exchanger
    with safety group set
learn more
Wärmezählereinbauset
  • Heat meter installation set
learn more
Verteilerbalken für Regumat DN 25
  • Distributor
    for Regumat DN 25
learn more
Modulverteiler für Regumat DN 25
  • Modular distributor
    for Regumat DN 25
learn more
Verteilerbalken für Regumat DN 40 / 50
  • Distributor
    for Regumat DN 40 / 50
learn more
HydroFixx für Regumat DN 25
  • HydroFixx Hydraulic separator/distributor combination
    for Regumat DN 25
learn more
MonoFixx für Regumat DN 25
  • MonoFixx
    for Regumat DN 25
learn more

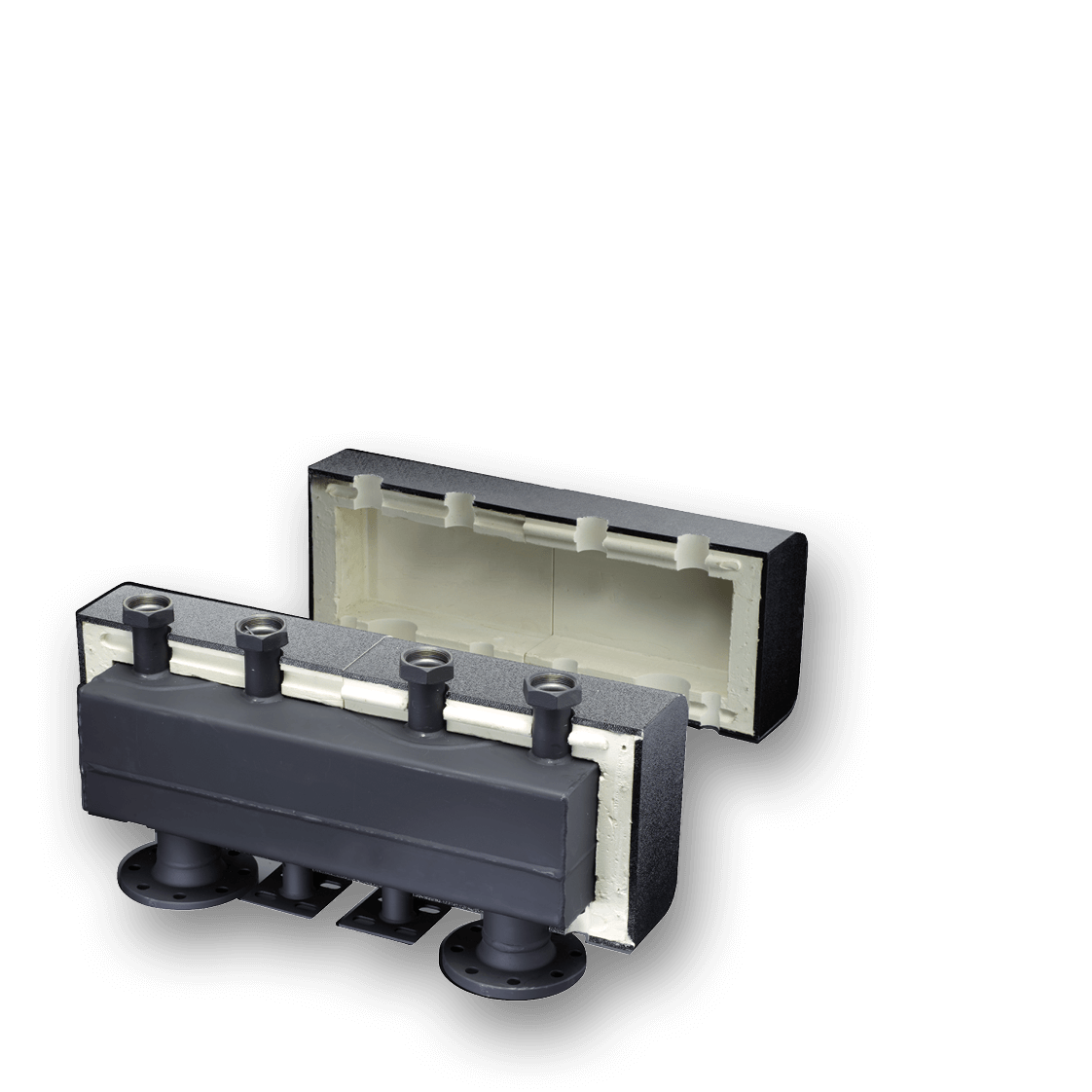

HydroFixx für Regumat DN 40 / 50
  • HydroFixx Hydraulic separator/distributor combination
    for Regumat DN 40 / 50
learn more
Regtronic RH Heizkreisregler
  • Regtronic RH Heating circuit controller
learn more
Regtronic EM Erweiterungsmodul
  • Regtronic EM Extension module
learn more

Regtronic
Weather-compensated control of the heating flow temperature

Regtronic RH Heizkreisregler
Regtronic RH Heating circuit controller
Weather-compensated control of the heating flow temperature via the demand of a heat generator and/or a mixing valve (e.g. Regumat M3 with three-way mixing valve).

The heating circuit controller can control a mixed and an unmixed heating circuit with heat demand. It can optionally be extended to six mixed and six unmixed heating circuits.
advantages of the Regtronic RH
  • Different control modes of the heating circuits possible: weather, fixed value and room temperature
  • Schematically preprogrammed  standard­ applications and numerous optional functions
  • Modularly extendable with up to five  Regtronic EM
Regtronic EM Erweiterungsmodul
Regtronic EM Extension module
For extending the Regtronic RH heating circuit controller by six sensor inputs and five relay outputs. Thus, further mixed and unmixed heating circuits can be controlled.

Up to five extension modules can be connected to the Regtronic RH heating circuit controller. A PT 1000 pipe contact sensor is included in the scope of delivery.
