Aktor M Motoriosed actuator, modulating with 0 - 10 V, 4 - 20 mA or on/off / floating control
24 V AC / DC, including spring return and adapter, normally closing, squeeze connection

Please wait!
Please wait!

Aktor M motorised actuator, 24 V AC/DC

Modulating control with 0 - 10 V,  4 - 20 MA or switching as on/off or floating control. Linear characteristic line (linear, square-law, equal-percentage) adjustable.

With position feedback signal 0 - 10 V. 40 mm stroke, with spring return and adapter.

For Cocon QFC pressure independent control valves DN 125 to DN 200 and two-way valves DN 65 to DN 150. Valves normally closing.
Art.No.: 1158032
EAN: 4026755399202
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.
Download GAEB


Download tender text

Accessories

Connection module 230 V for Aktor M motorized actuator 24 V (item no.1158030/31/32)
Item no. 1158033

Valves

Aktor M Adapter For item no. 1158030, 1158031, 1158032
Item no. 9010526

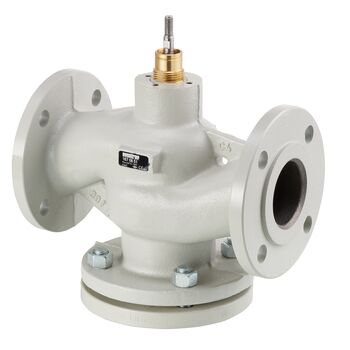

Two-/three-way valve with flanges according to EN 1092-2 PN 16 DN 65, kvs = 63.00, cast iron
Item no. 1130851
Two-/three-way valve with flanges according to EN 1092-2 PN 16 DN 80, kvs = 100.00, cast iron
Item no. 1130852
Two-/three-way valve with flanges according to EN 1092-2 PN 16 DN 100, kvs = 160.00, cast iron
Item no. 1130853
Two-/three-way valve with flanges according to EN 1092-2 PN 16 DN 125, kvs = 220.00, cast iron
Item no. 1130854
Two-/three-way valve with flanges according to EN 1092-2 PN 16 DN 150, kvs = 320.00, cast iron
Item no. 1130855
Cocon QFC Pressure independent control valve with flanges according to EN 1092-2 PN 16 DN 125, 27 - 108 m³/h, with two mounted Classic measuring valves, cast iron
Item no. 1146154
Cocon QFC Pressure independent control valve with flanges according to EN 1092-2 PN 16 DN 150, 36 - 150 m³/h, with two mounted Classic measuring valves, cast iron
Item no. 1146155
Cocon QFC Pressure independent control valve with flanges according to EN 1092-2 PN 16 DN 200, 55 - 190 m³/h, with two mounted Classic measuring valves, cast iron
Item no. 1146156
Cocon QFC Pressure independent control valve with flanges according to EN 1092-2 PN 25 DN 125, 27 - 108 m³/h, with two mounted Classic measuring valves, nodular cast iron
Item no. 1146654
Cocon QFC Pressure independent control valve with flanges according to EN 1092-2 PN 25 DN 150, 36 - 150 m³/h, with two mounted Classic measuring valves, nodular cast iron
Item no. 1146655
Cocon QFC Pressure independent control valve with flanges according to EN 1092-2 PN 25 DN 200, 55 - 190 m³/h, with two mounted Classic measuring valves, nodular cast iron
Item no. 1146656
Two/three-way valve with flanges PN 16, with hole circles according to ANSI class 150 DN 65, kvs = 63.00, cast iron
Item no. 1670851
Two/three-way valve with flanges PN 16, with hole circles according to ANSI class 150 DN 80, kvs = 100.00, cast iron
Item no. 1670852
Two/three-way valve with flanges PN 16, with hole circles according to ANSI class 150 DN 100, kvs = 160.00, cast iron
Item no. 1670853
Two/three-way valve with flanges PN 16, with hole circles according to ANSI class 150 DN 125, kvs = 220.00, cast iron
Item no. 1670854
Two/three-way valve with flanges PN 16, with hole circles according to ANSI class 150 DN 200, kvs = 320.00, cast iron
Item no. 1670855

Spare parts

Aktor M Adapter For item no. 1158030, 1158031, 1158032
Item no. 9010526

Dimensions

Dimensions of article

Length Width Height Weight
290 mm 230 mm 152 mm 5,87 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 390 mm 295 mm 212 mm 6,47 kg
Europallet 48 1200 mm 800 mm 1427 mm 333,42 kg
