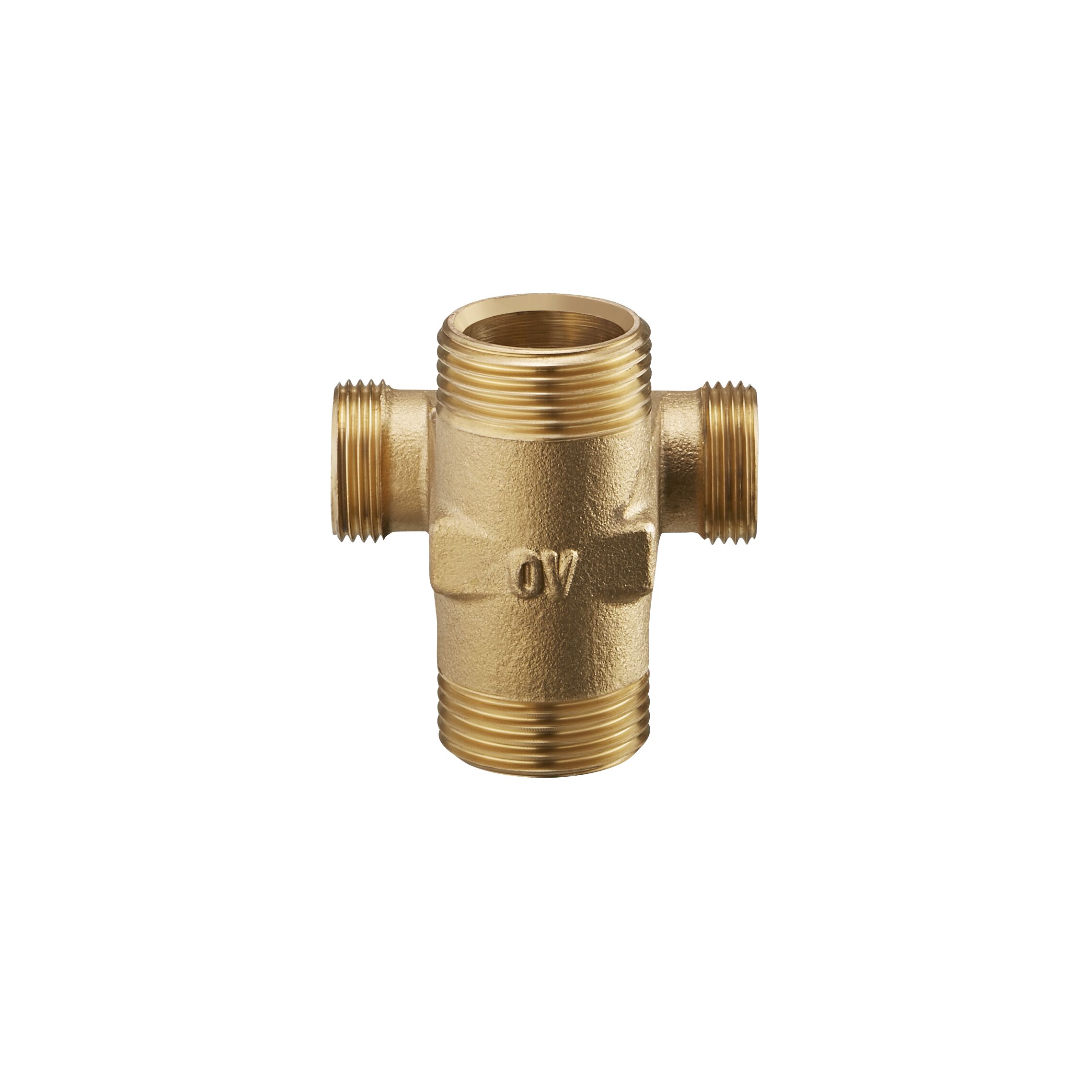

Cofit S Cross connection piece
G 1 x G 1 x G ¾ x G ¾, brass


No longer produced
Art.No.: 1505565
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
68 mm 68 mm 65 mm 0,32 kg

Packing units

Type Qty. Length Width Height Weight

Images

Product images

  File size
163,3 KB
  Size
2279 px x 2279 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
419,77 KB
  Size
1941 px x 2013 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
10,82 KB
  Size
237 px x 237 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0
Property Value
Model Cross piece 90°
Surface protection Untreated
Connection 1 Outer thread cylindrical BSPP-G (ISO 228-1)
Connection 2 Outer thread cylindrical BSPP-G (ISO 228-1)
Material quality Other
Material Brass
Capped
With gaskets
Nominal inner diameter of connection 2 1 inch (25)
Nominal inner diameter of connection 3 3/4 inch (20)
Nominal inner diameter connection 4 3/4 inch (20)
Connection 3 Outer thread cylindrical BSPP-G (ISO 228-1)
Connection 4 Outer thread cylindrical BSPP-G (ISO 228-1)
Gastec QA
KIWA certified
Outer pipe diameter connection 1 43 mm
Outer pipe diameter connection 2 43 mm
Outer pipe diameter connection 3 27.5 mm
Outer pipe diameter connection 4 27.5 mm
Working length connection 1 9 mm
Working length connection 2 9 mm
Working length connection 3 8 mm
Working length connection 4 8 mm
FM quality mark
VdS quality mark
UL quality mark
ULC quality mark
LPCB quality mark
Reducing
Nominal inner diameter connection 1 1 inch (25)
Surface treatment Untreated
