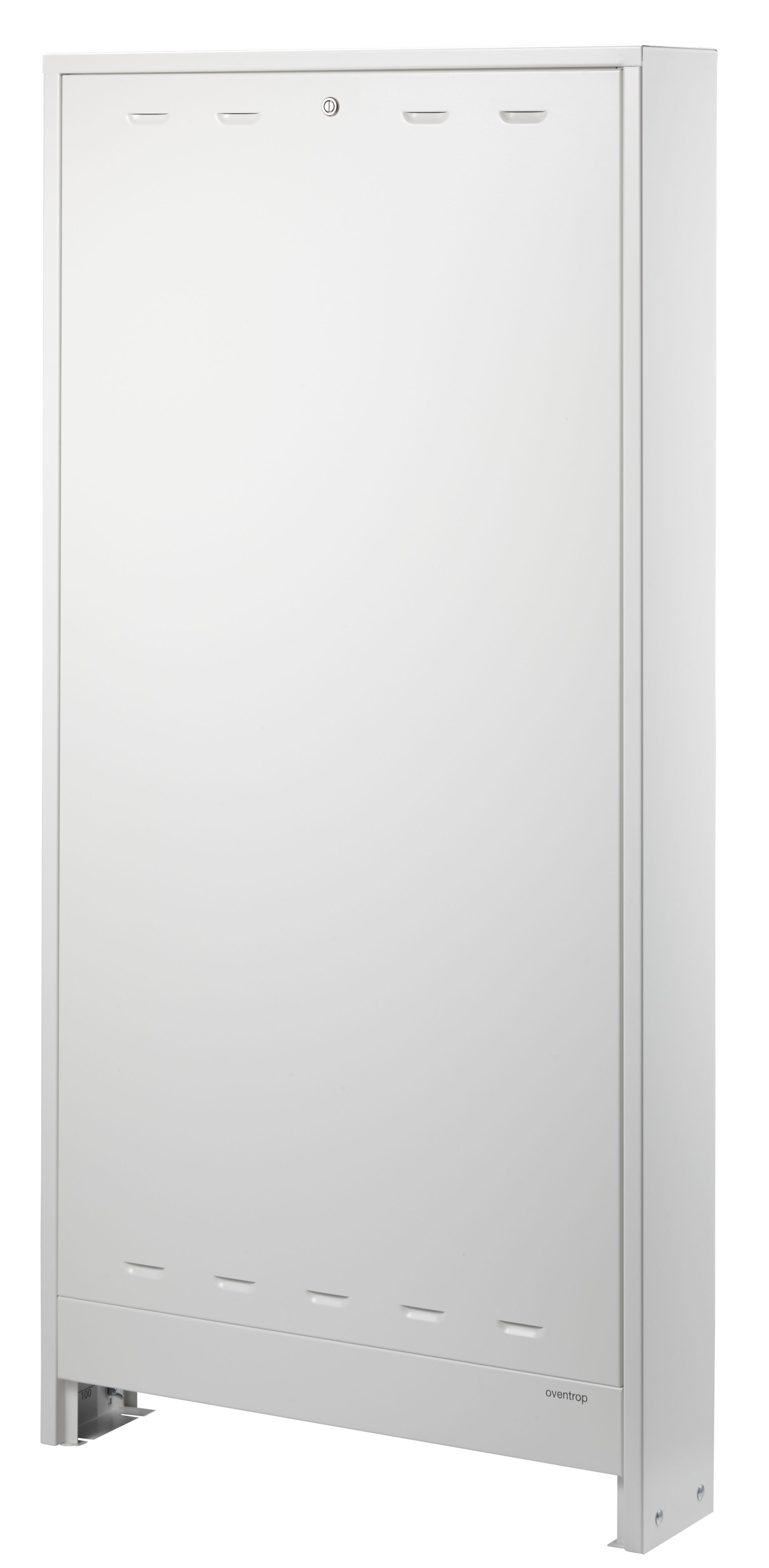

Surface-mounted cabinet
long model, for heating circuit manifolds up to 12 circuits


Surface-mounted cabinet for Regudis W-HTE dwelling station
Long model

Flush-mounted cabinet with mounting rails for direct installation and protection of the Regudis W dwelling station (except for Regudis W-HTU/W-HTU Basic with double-walled heat exchanger/W-HTO/W-HTO Duo with heating circuit separation system) and of the Multidis SF heating circuit manifold up to 12 circuits.

Body made of sheet steel, galvanised.
Frame, door and screed cover powder-coated, white RAL 9010, matt.
Screed cover removable.
Lock with slot (operation e.g. by screwdriver or coin).
Cylinder lock optionally available.

Incl. fixing material for the dwelling station, the heating circuit manifold and a plug.
Incl. accessories for equipotential bonding.

Adjustable height.
Dimensions without frame (W x H x D): 880 mm x 1440 - 1565 mm x 160 mm

Weight: 29.8 kg
Art.No.: 1341193
EAN: 4026755457216
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Is hood / cabinet of

Regudis W-HTU Dwelling station performance range 1, 12 l/min., heat exchanger copper brazed
Item no. 1341030
Regudis W-HTU Dwelling station performance range 2, 15 l/min., heat exchanger copper brazed
Item no. 1341031
Regudis W-HTU Dwelling station performance range 3, 17 l/min., heat exchanger copper brazed
Item no. 1341032
Regudis W-HTU Dwelling station performance range 1, 12 l/min., heat exchanger nickel brazed
Item no. 1341050
Regudis W-HTU Dwelling station performance range 2, 15 l/min., heat exchanger nickel brazed
Item no. 1341051
Regudis W-HTU Dwelling station performance range 3, 17 l/min., heat exchanger nickel brazed
Item no. 1341052
Regudis W-HTF Dwelling station with unmixed heating circuit performance range 1, 12 l/min., heat exchanger copper brazed
Item no. 1341130
Regudis W-HTF Dwelling station with unmixed heating circuit performance range 2, 15 l/min., heat exchanger copper brazed
Item no. 1341131
Regudis W-HTF Dwelling station with unmixed heating circuit performance range 3, 17 l/min., heat exchanger copper brazed
Item no. 1341132
Regudis W-HTF Dwelling station with mixed heating circuit performance range 1, 12 l/min., heat exchanger copper brazed
Item no. 1341140
Regudis W-HTF Dwelling station with mixed heating circuit performance range 2, 15 l/min., heat exchanger copper brazed
Item no. 1341141
Regudis W-HTF Dwelling station with mixed heating circuit performance range 3, 17 l/min., heat exchanger copper brazed
Item no. 1341142
Regudis W-HTF Dwelling station with unmixed heating circuit performance range 1, 12 l/min., heat exchanger nickel brazed
Item no. 1341150
Regudis W-HTF Dwelling station with unmixed heating circuit performance range 2, 15 l/min., heat exchanger nickel brazed
Item no. 1341151
Regudis W-HTF Dwelling station with unmixed heating circuit performance range 3, 17 l/min., heat exchanger nickel brazed
Item no. 1341152
Regudis W-HTF Dwelling station with mixed heating circuit performance range 1, 12 l/min., heat exchanger nickel brazed
Item no. 1341160
Regudis W-HTF Dwelling station with mixed heating circuit performance range 2, 15 l/min., heat exchanger nickel brazed
Item no. 1341161
Regudis W-HTF Dwelling station with mixed heating circuit performance range 3, 17 l/min., heat exchanger nickel brazed
Item no. 1341162
Regudis W-HTU Dwelling station without cold water outlet and spacer for water meter perfomance range 2, 15 l/min., heat exchanger copper brazed
Item no. 1341231
Regudis W-HTU Dwelling station without cold water outlet and spacer for water meter perfomance range 2, 15 l/min., heat exchanger nickel brazed
Item no. 1341251
Regudis W-TU Dwelling station perfomance range 3, 17 l/min., heat exchanger copper brazed
Item no. 1341257
Regudis W-TU Dwelling station perfomance range 3, 17 l/min., heat exchanger nickel brazed
Item no. 1341267
Regudis W-HTU Duo Dwelling station with heating circuit separation system performance range 3, 17 l/min., heat exchanger copper brazed
Item no. 1341332
Regudis W-HTF Dwelling station with mixed heating circuit and high temperature outlet performance range 1, 12 l/min., heat exchanger copper brazed
Item no. 1341340
Regudis W-HTF Dwelling station with mixed heating circuit and high temperature outlet performance range 2, 15 l/min., heat exchanger copper brazed
Item no. 1341341
Regudis W-HTF Dwelling station with mixed heating circuit and high temperature outlet performance range 3, 17 l/min., heat exchanger copper brazed
Item no. 1341342
Regudis W-HTF Dwelling station with mixed heating circuit and high temperature outlet performance range 1, 12 l/min., heat exchanger nickel brazed
Item no. 1341360
Regudis W-HTF Dwelling station with mixed heating circuit and high temperature outlet performance range 2, 15 l/min., heat exchanger nickel brazed
Item no. 1341361
Regudis W-HTF Dwelling station with mixed heating circuit and high temperature outlet performance range 3, 17 l/min., heat exchanger nickel brazed
Item no. 1341362
Regudis W-HTF Dwelling station with mixed heating circuit and circulation pipe performance range 3, 17 l/min., heat exchanger copper brazed
Item no. 1341442
Regudis W-HTF Dwelling station with mixed heating circuit and circulation pipe performance range 3, 17 l/min., heat exchanger nickel brazed
Item no. 1341462
Regudis W-HTF Dwelling station with mixed heating circuit, high temperature outlet and circulation pipe performance range 3, 17 l/min., heat exchanger copper brazed
Item no. 1341542
Regudis W-HTF Dwelling station with mixed heating circuit, high temperature outlet and circulation pipe performance range 3, 17 l/min., heat exchanger nickel brazed
Item no. 1341562
Regudis W-HTF Dwelling station with unmixed heating circuit and circulation pipe performance range 3, 17 l/min., heat exchanger copper brazed
Item no. 1341642
Regudis W-HTF Dwelling station with unmixed heating circuit and circulation pipe performance range 3, 17 l/min., heat exchanger nickel brazed
Item no. 1341662

Dimensions

Dimensions of article

Length Width Height Weight
1445 mm 885 mm 160 mm 29,8 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 1480 mm 890 mm 165 mm 31,5 kg
Europallet 4 0 mm 0 mm 0 mm 0 kg
