Uni XH Thermostat
M 30 x 1.5, 7-28 °C, * 1-5, liquid sensor, white


Thermostat "Uni XH"

with liquid sensor. Limitation and locking of individual nominal value. With frost protection. Tested and pproved according to EN 215.

Suitable for valves with connection thread M 30 x 1.5 and the integrated distributors with connection thread M 30 x 1.5 of the following radiator manufacturers:

ACOVA, Alarko, Aluplan, Arbonia, Baufa, Bemm, Borer, Bremo, Caradon- Stelrad, Cetra, Cöskünöz, Concept, Dekatherm, DEF, Delta, Demrad, DiaNorm, Dia-therm, Dunaferr, DURA, Ferroli, Gerhard + Rauh, Heatline, Henrad, HM- Heizkörper, Hoval, IMAS, Itemar/Biasi, Jaga, JOCO, Kaitherm, Kalor, Kermi, Korado, Lembacher, Manaut, Merriott, Neria, Purmo, Radson, Rettig, Runtal, Starpan, Stelrad, Superia, Univa, US-Steel, Vasco, VEHA, Winkels, Zehnder, Zenith.

Temperature range 7-28°C
Graduation on cap * 1-5
Without ‘0’ setting
Art.No.: 1011364
EAN: 4026755219838
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Actuators

Aktor T 2P Electrothermal actuator, on/off control 230 V AC, normally closed, connection thread M 30 x 1.5
Item no. 1012415
Aktor T 2P Electrothermal actuator, on/off control 24 V AC / DC, normally closed, connection thread M 30 x 1.5
Item no. 1012416
Aktor T 2P Electrothermal actuator, on/off control 230 V AC, normally open, connection thread M 30 x 1.5
Item no. 1012425
Aktor T 2P Electrothermal actuator, on/off control 24 V AC / DC, normally open, connection thread M 30 x 1.5
Item no. 1012426
Aktor T 2P Electrothermal actuator, on/off control 230 V AC, normally closed with integrated auxiliary switch, connection thread M 30 x 1.5
Item no. 1012435
Aktor T 2P Electrothermal actuator, on/off control 24 V AC / DC, normally closed, M 30 x 1.5, cable length 2 m
Item no. 1012442
Aktor T 2P Electrothermal actuator, on/off control 230 V AC, normally closed, connection thread M 30 x 1.5, cable length 2 m
Item no. 1012452
Aktor T 2P Electrothermal actuator, on/off control 230 V AC, normally closed, connection thread M 30 x 1.5, cable length 5 m
Item no. 1012455
Aktor T 2P Electrothermal actuator, on/off control 230 V AC, normally closed, connection threadM 30 x 1.5, cable length 10 m
Item no. 1012459
Aktor M Electromotive actuator, on/off control, with short operating time (3 s) 230 V AC, connection thread M 30 x 1.5
Item no. 1012710
Aktor M Electromotive actuator, on/off control, with short operating time (3 s), connection thread M 30 x 1.5 24 V AC / DC, connection thread M 30 x 1.5
Item no. 1012711
Aktor M Electromotive actuator, modulating with 0 - 10 V 24 V AC / DC, modulating proportional actuator, connection thread M 30 x 1.5
Item no. 1012717
Aktor M Electromotive actuator, modulating with 0 - 10 V 24 V AC / DC, modulating proportional actuator, connection thread M 30 x 1.5
Item no. 1012725
Aktor M Electromotive actuator, modulating with 0 - 10 V 24 V AC / DC, modulating proportional actuator, connection thread M 30 x 1.5
Item no. 1012726
Aktor M Electromotive actuator actuator, on/off and floating control 230 V AC, connection thread M 30 x 1.5
Item no. 1012729
Aktor M Electromotive actuator with Modbus RTU interface 24 V AC / DC, connection thread M 30 x 1.5, suitable for Cocon QTZ
Item no. 1012745
Aktor M Electromotive actuator with KNX interface 21 - 32 V (from KNX bus), connection thread M 30 x 1.5
Item no. 1012746
Aktor T ST Electrothermal actuator, 0 - 10 V control 24 V AC, normally closed, connection thread M 30 x 1,5
Item no. 1012953
Aktor M Electromotive actuator with Modbus RTU interface 24 V AC / DC, connection thread M 30 x 1.5, suitable for Cocon QTR/QFC DN 40 and DN 50
Item no. 1158014

Dimensions

Dimensions of article

Length Width Height Weight
91 mm 59 mm 61 mm 0,15 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 100 mm 60 mm 60 mm 0,17 kg
Carton 10 310 mm 125 mm 115 mm 1,78 kg
Europallet 2100 1200 mm 800 mm 1245 mm 394,5 kg

Images

Product images

  File size
16,42 KB
  Size
497 px x 330 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
67,68 KB
  Size
1024 px x 1024 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
195,16 KB
  Size
2218 px x 1536 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
98,53 KB
  Size
1024 px x 1024 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
436,2 KB
  Size
3276 px x 3276 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
756,38 KB
  Size
3176 px x 3162 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
331,56 KB
  Size
1417 px x 1417 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
593,9 KB
  Size
3072 px x 2048 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
610,13 KB
  Size
3425 px x 2393 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
610,59 KB
  Size
2185 px x 2185 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
941,92 KB
  Size
3449 px x 3543 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
550,89 KB
  Size
3276 px x 3276 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
366,02 KB
  Size
3449 px x 3543 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
448,09 KB
  Size
1417 px x 1853 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
79,52 KB
  Size
661 px x 661 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
159,86 KB
  Size
1134 px x 850 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
305,53 KB
  Size
2128 px x 2128 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
98,96 KB
  Size
709 px x 709 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
535,71 KB
  Size
3072 px x 2048 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
87,5 KB
  Size
756 px x 709 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
778,22 KB
  Size
2852 px x 3184 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
515,83 KB
  Size
2327 px x 2327 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
101,24 KB
  Size
945 px x 945 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
752,77 KB
  Size
3152 px x 3164 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
312,5 KB
  Size
2196 px x 2196 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
719,56 KB
  Size
2591 px x 2590 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
129,13 KB
  Size
1028 px x 1028 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
68,89 KB
  Size
709 px x 709 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
44,18 KB
  Size
2658 px x 2731 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
2,25 MB
  Size
4960 px x 3508 px
  Properties
  •  Clear product picture
  •  Cutout
Download

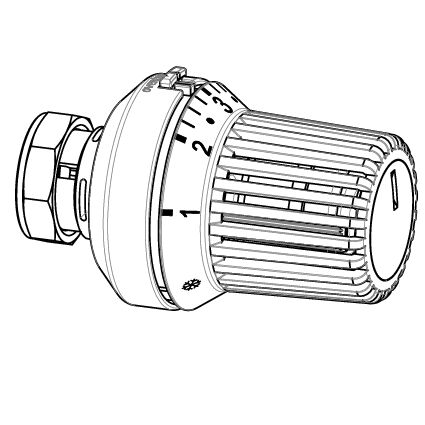

Drawings

  File size
61,05 KB
  Size
595 px x 961 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
46,5 KB
  Size
425 px x 425 px
  Properties
  •  Clear product picture
  •  Cutout
Download

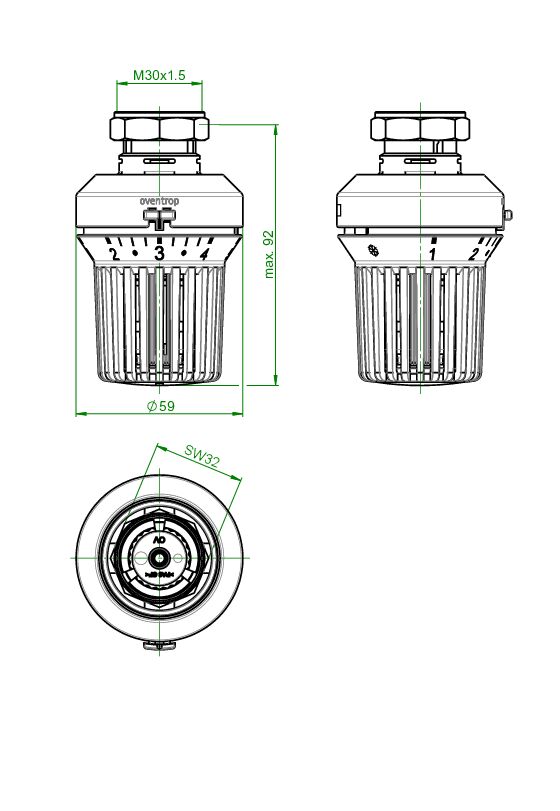

Dimensional drawings

  File size
73,67 KB
  Size
560 px x 811 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Certificate

ETIM

Klassifizierung
ETIM 7.0 EC010064
Radiator thermostat button
Property Value
Colour White
Model Straight
RAL-number 9016
Adjustment range 7 - 28
Remote operation
Vandal proof
Programme clock
Adjustment element Liquid-filled
Remote sensor
Frost protected
Mechanically sealable at zero position
Connection to radiator stop valve M30 x 1.5
Blocking/limiting adjustment range
Suitable for valve compact radiator
With anti-theft security
