Ofix CEP Compression fitting for G ¾ ET according to DIN EN 16313, soft sealing
for copper pipes, precision steel pipes, stainless steel pipes and galvanised steel pipes, 2-fold, G ¾ union nut x 10 mm


Ofix compression fittings for G 3/4 external thread and G 3/8, G 1/2 and G 3/4 internal thread are available for various types of pipes, such as copper pipes, plastic pipes, stainless steel pipes, precision steel pipes and galvanised steel pipes. Metal to metal sealing and soft sealing variants are available. No support sleeves are necessary for the soft sealing variant.
Art.No.: 1016840
EAN: 4026755281866
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
60 mm 35 mm 21 mm 0,12 kg

Packing units

Type Qty. Length Width Height Weight
Bag 1 60 mm 35 mm 25 mm 0,12 kg
Carton 50 298 mm 285 mm 115 mm 6,46 kg

Images

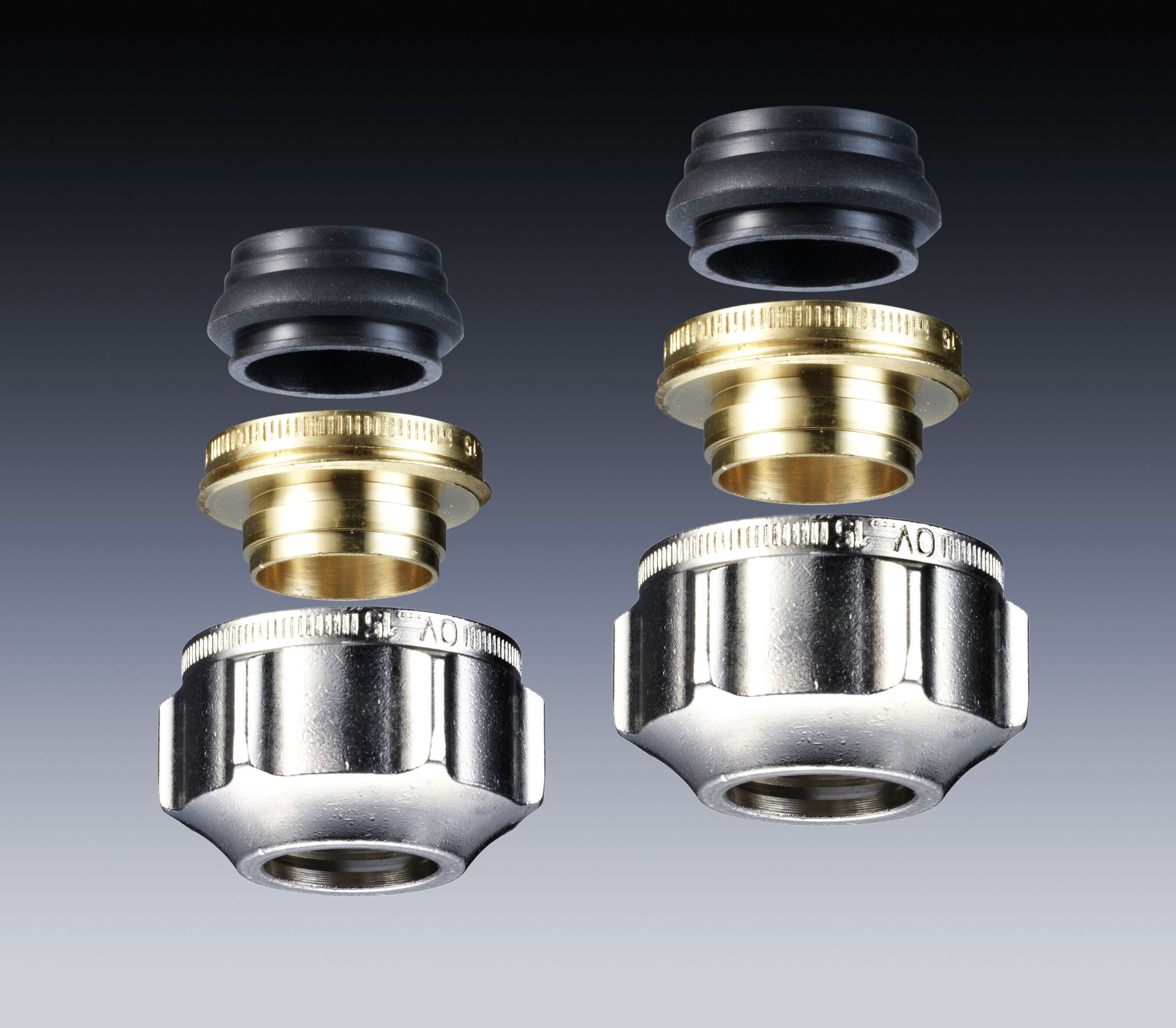

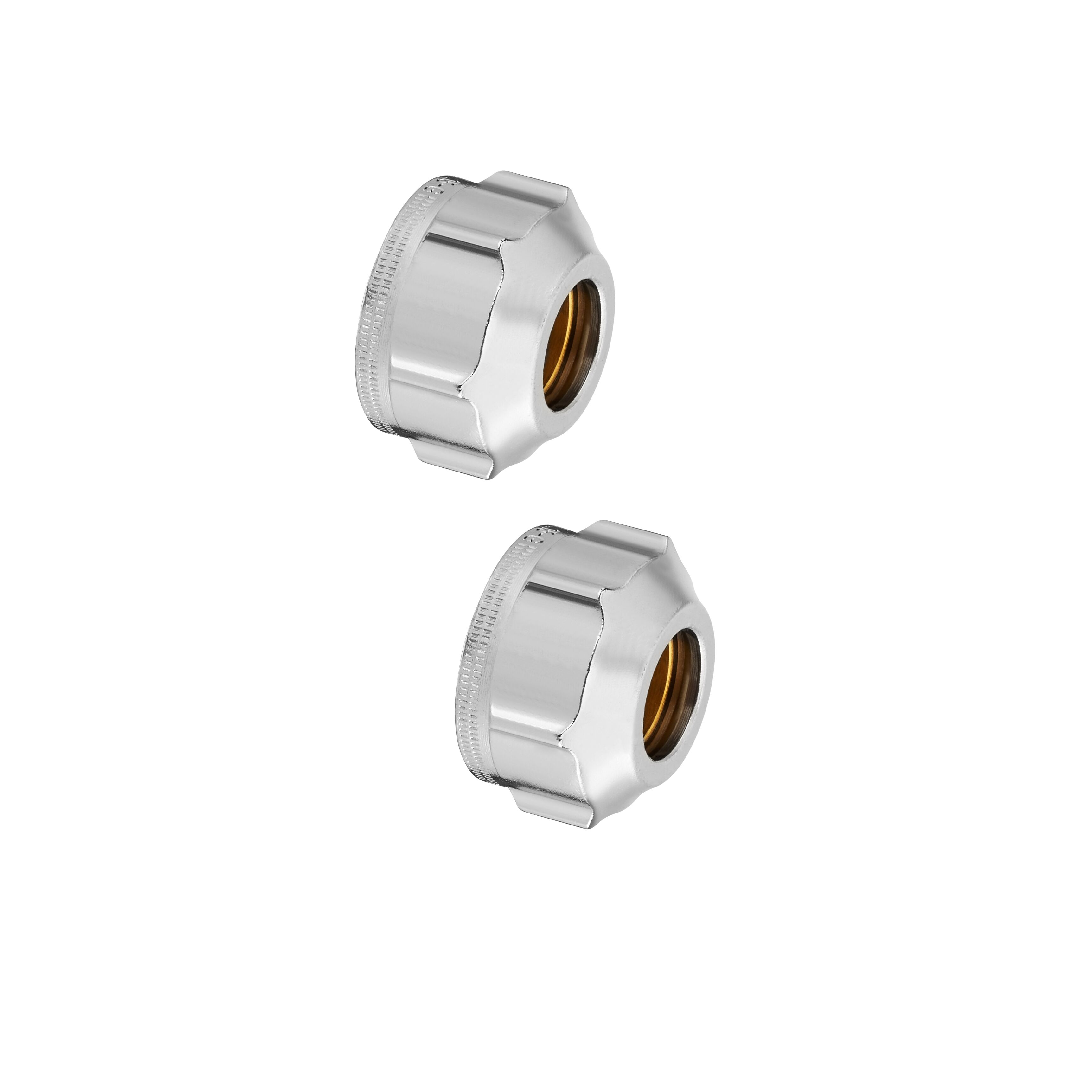

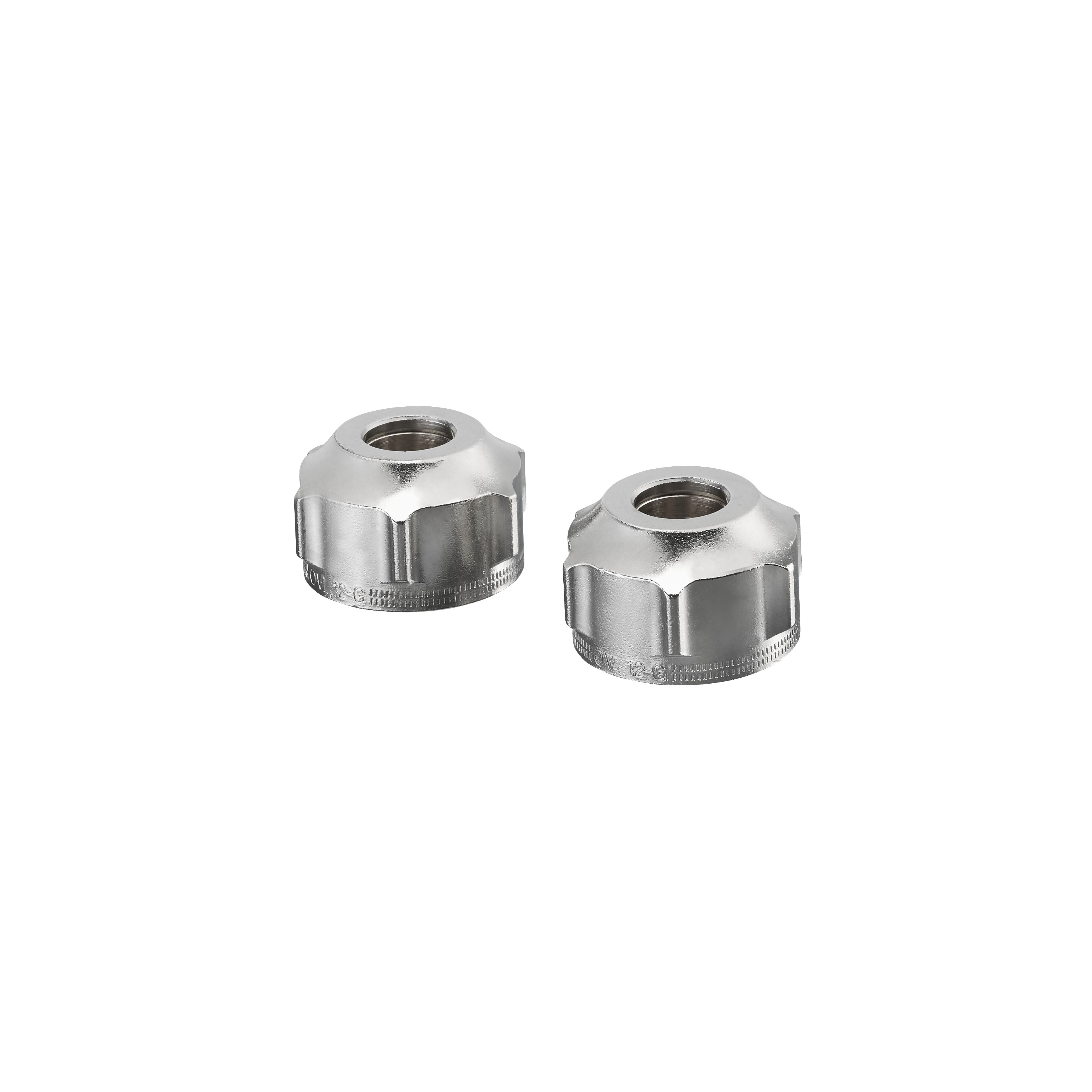

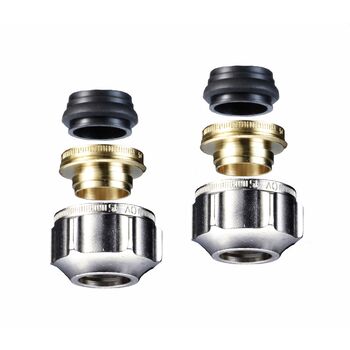

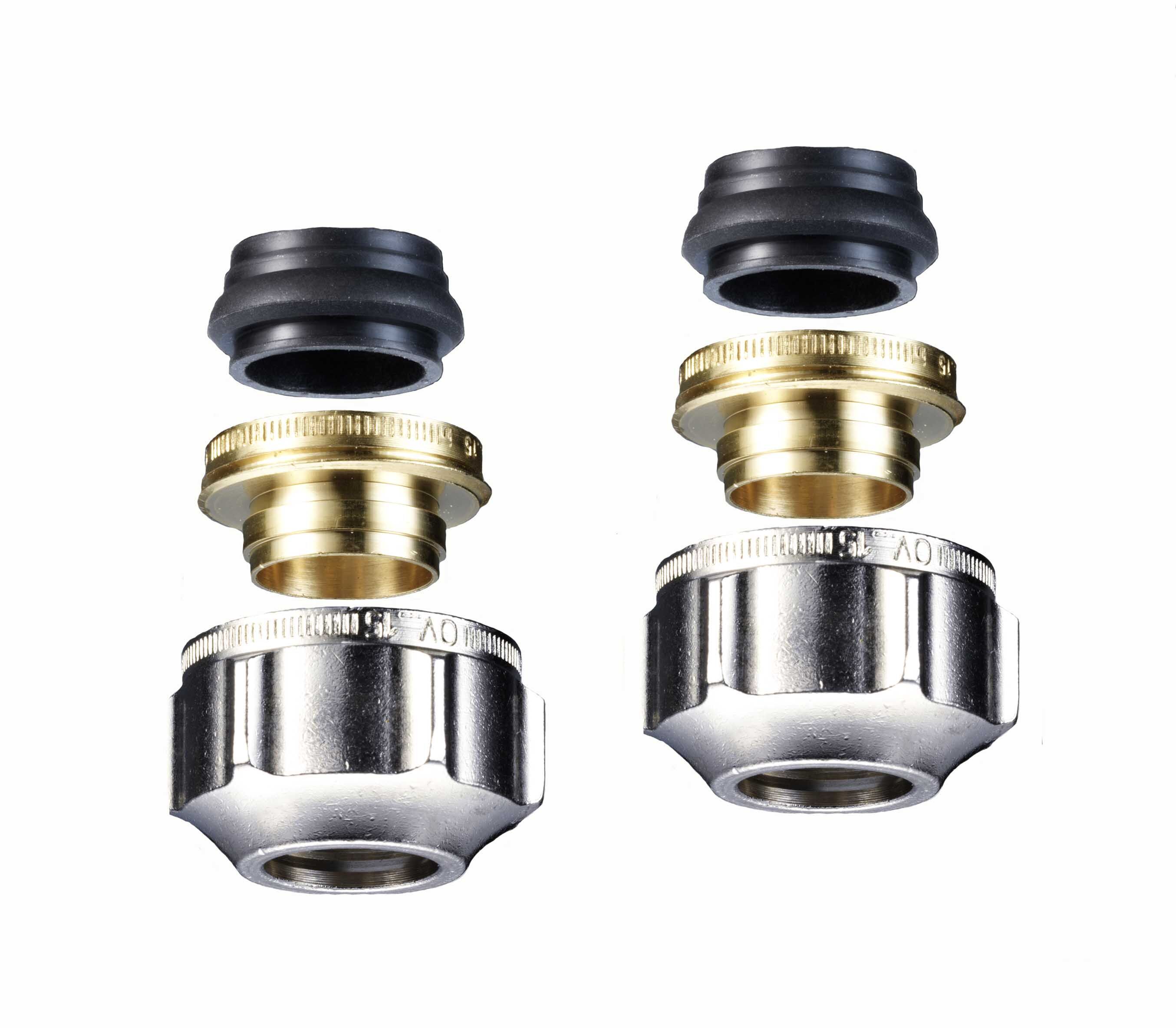

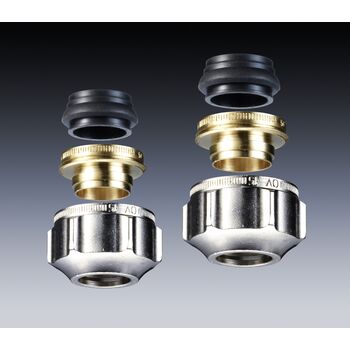

Product images

  File size
194,88 KB
  Size
3447 px x 3446 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
246,67 KB
  Size
2709 px x 2368 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
275,89 KB
  Size
3840 px x 3840 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
418,38 KB
  Size
2709 px x 2368 px
  Properties
  •  Clear product picture
  •  Cutout
Download

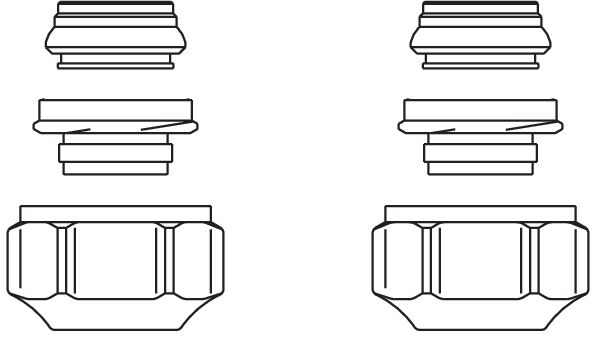

Drawings

  File size
19,62 KB
  Size
595 px x 339 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Brochure

  Name Size
more languages 490,47 KB
more languages 3,15 MB

ETIM

Klassifizierung
ETIM 7.0 EC011042
Compression ring set
Property Value
Material quality Other
Outer pipe diameter 10 mm
Material gland nut Brass
Suitable for steel tube
Suitable for copper tube
Suitable for stainless steel tube
Suitable for aluminium tube
Suitable for plastic multi-layer pipes
With thrust bushing
Thread connection Internal thread
Compression ring material Brass
Nut thread size 3/4 inch
