Thermostatic valve "AF"
DN 15, PN 20, straight pattern, flat sealing, kv = 0.32

Thermostatic radiator valve "AF"

For use in central heating systems, especially suitable for direct or indirect connection to district heating circuits (according to AGFW work sheet FW 507). Central heating systems with a high temperature differential and systems requiring the setting of low flow rates.

With infinitely adjustable fine presetting.

Modification of the hidden presetting and replacement of the valve insert without draining the system.

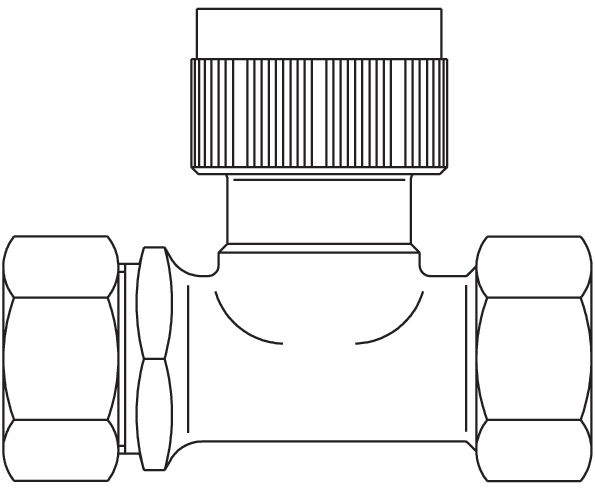

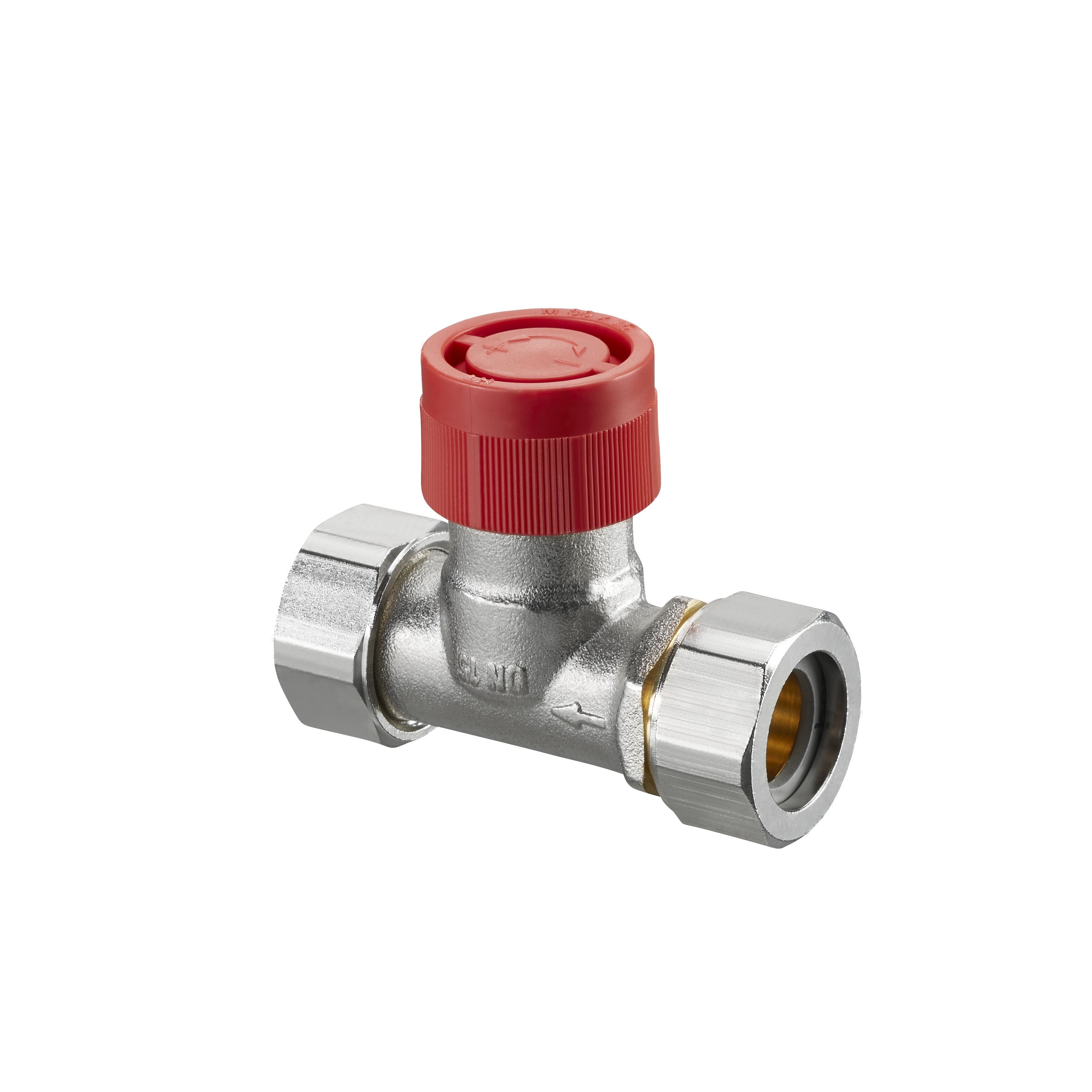

Bronze/brass valve with nickel plated body, stem made of stainless steel, straight patterrn valve, both ports flat sealing with collar nut (length 66 mm).

All valves of the "Series F" have a red protection cap, the gland nut as from end of 1993 has a red mark.

Thermostat connection thread: M 30 x 1.5
Art.No.: 1180955
EAN: 4026755186352
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.


Dimensions of article

Length Width Height Weight
78 mm 63 mm 33 mm 0,33 kg

Packing units

Type Qty. Length Width Height Weight
Bag 1 80 mm 65 mm 35 mm 0,33 kg
Carton 25 295 mm 285 mm 115 mm 8,56 kg
Unknown 2000 0 mm 0 mm 0 mm 666 kg


Product images

  File size
379,5 KB
3408 px x 3407 px
  •  Clear product picture
  •  Cutout
  File size
354,92 KB
1404 px x 1404 px
  •  Clear product picture
  •  Cutout


  File size
23,83 KB
595 px x 490 px
  •  Clear product picture
  •  Cutout


Technical data

  Name Size
db_1183763_en.pdf 3,98 MB


  Name Size
L_118060080.pdf 206,38 KB


ETIM 7.0 EC010136
Radiator stop valve
Property Value
Height 31 mm
Shape Straight
Surface protection Nickel-plated
Colour button Other
Operation Thermostatic with button
Automatic flow control
With dust cap
With compression set
Suitable for single pipe system
Suitable for two pipe system
Size of pipe connection Other
Size of radiator connection Other
Shortened construction length
Reverse direction of flow
Size of thermostatic adjustment element M30 x 1.5
Can be preset
Housing material Brass
Kvs value 0.37
Thermostatically prepared
With bent tailpiece
