Actuator 24 V (0-10 V), operating time 140 s, torque 10 Nm
for Regumat M3 DN 32 plus/40/50


Art.No.: 1350958
EAN: 4026755432992
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
100 mm 80 mm 90 mm 0,52 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 160 mm 100 mm 95 mm 0,56 kg

Images

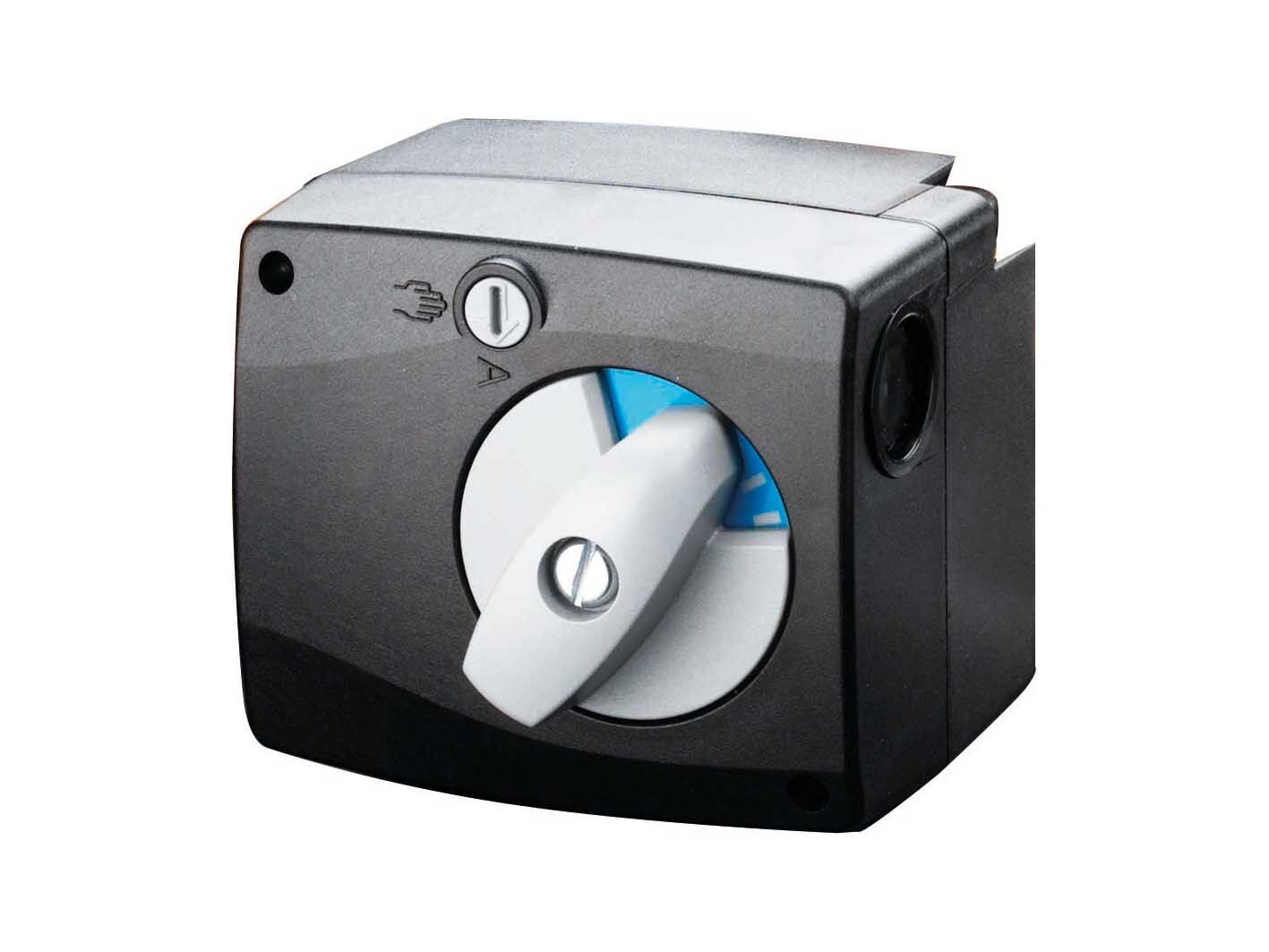

Product images

  File size
55,61 KB
  Size
1417 px x 1063 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
960,65 KB
  Size
2872 px x 2872 px
  Properties
  •  Clear product picture
  •  Cutout
Download

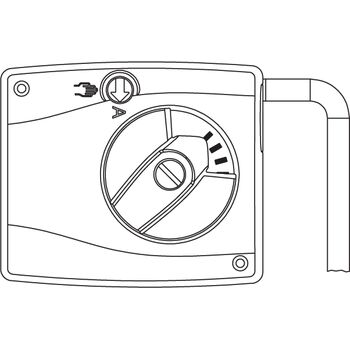

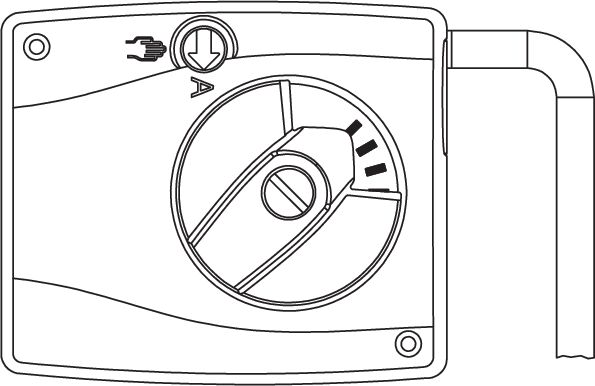

Drawings

  File size
33,29 KB
  Size
595 px x 386 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

ETIM

Klassifizierung
ETIM 7.0 EC011290
Electric servomotor
Property Value
Width 80 mm
Model Rotating
Height 70 mm
Depth 93 mm
Control signal 0-10 V
Material housing Plastic
Ambient temperature 0 - 50
Manual operation
Potential free switch contact
Length of connection cable 2.2 m
Explosion-proof
Degree of protection (IP) IP40
Auxiliary contacts optional
Automatic travel recognition
Deactivated when closed
Connection to stop valve Brand-dependent
With mechanical setting indicator
Position reporting system None
Operating time 140 s
Torque 5 Nm
Suitable for valve
Max. angle of rotation 50 °
Transmission With cogwheels
Adjustable operating range
Return at zero supply voltage
Supply voltage 230 V AC
Auxiliary contacts
End contacts 2
Adjustable position feedback signal
