Optigas Isolating ball valve
DN 15, Rp ½ IT, nickel plated


No longer produced
Art.No.: 3016404
EAN: 4026755262834
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
127 mm 56 mm 29 mm 0,23 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 127 mm 56 mm 29 mm 0,23 kg
Carton 25 300 mm 190 mm 165 mm 6 kg

Images

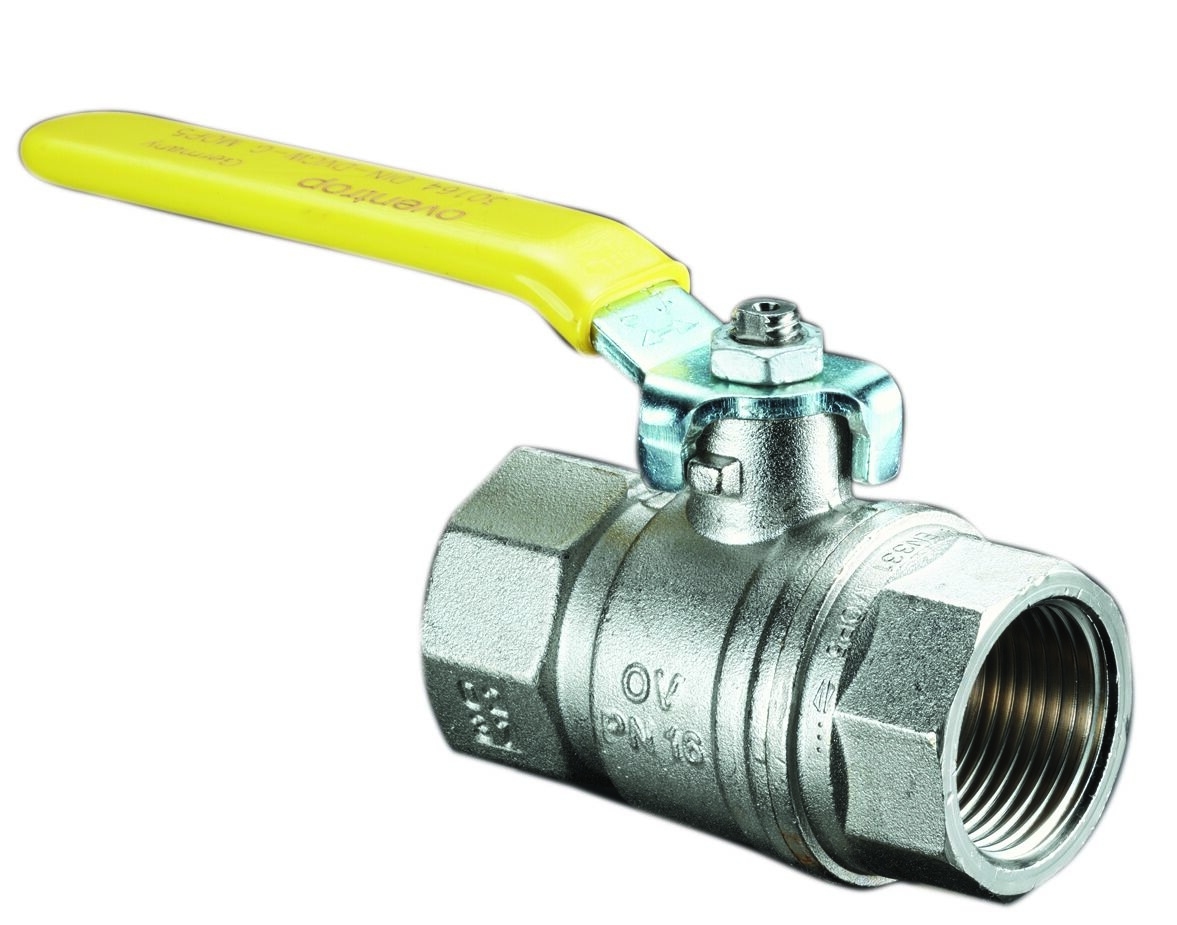

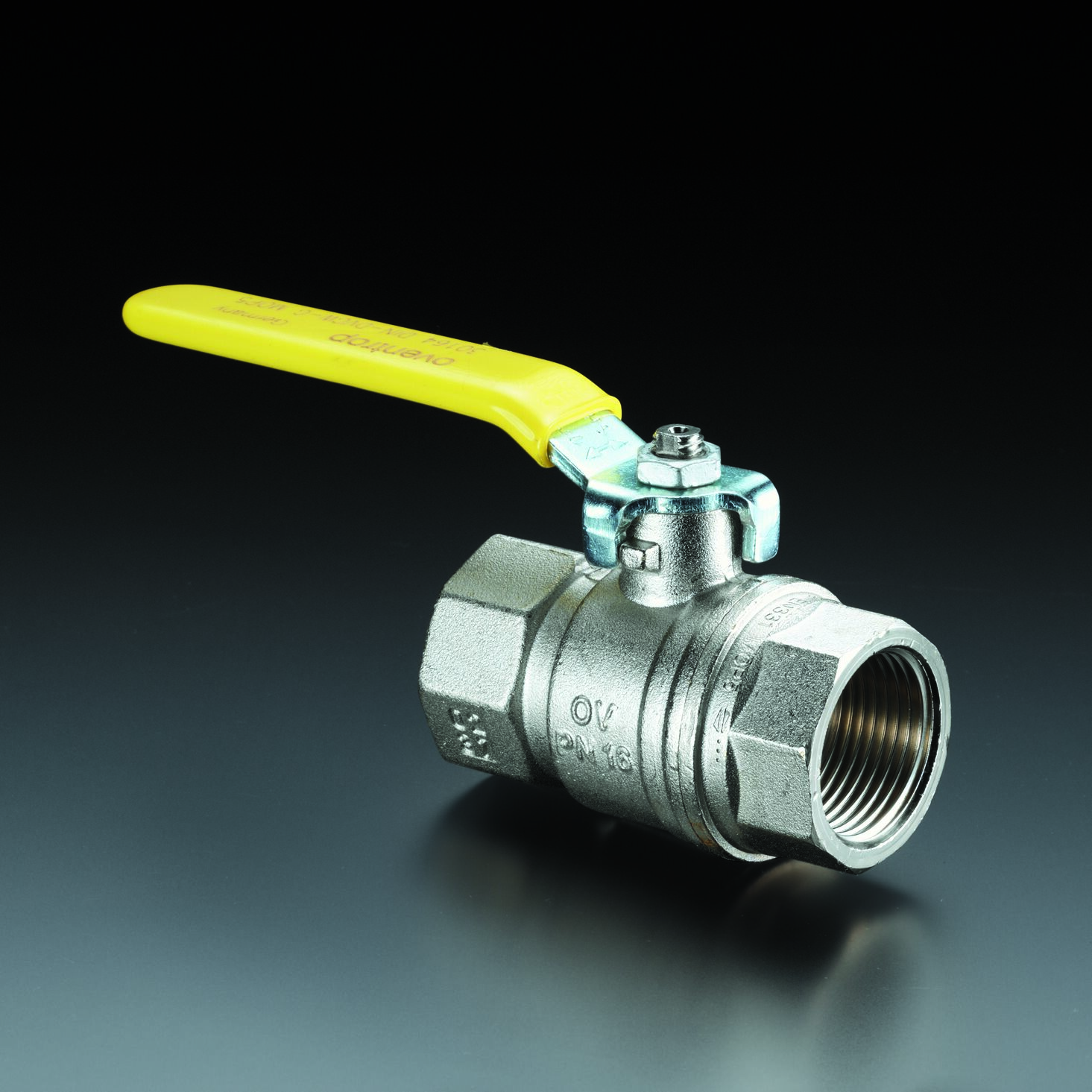

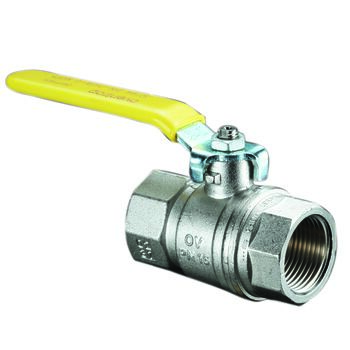

Product images

  File size
168,6 KB
  Size
1177 px x 925 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
281,15 KB
  Size
1465 px x 1465 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
9,39 KB
  Size
440 px x 215 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Manual

  Name Size

79,5 KB

1,15 MB

Brochure

ETIM

Klassifizierung
ETIM 7.0 EC011015
Gas valve
Property Value
Surface protection Nickel-plated
Connection 1 Inner thread conical BSPT-Rc (ISO 7-1)
Connection 2 Inner thread conical BSPT-Rc (ISO 7-1)
Operation Lever handle
With interlocking
Right-angled model
Nominal inner diameter of connection 2 1/2 inch (15)
Handle/hand wheel height 43 mm
Length of handle/diameter of hand wheel 100 mm
Sealing unit
With connection 1 coupling
With connection 2 coupling
DVGW quality mark
Housing material Brass
Nominal inner diameter connection 1 1/2 inch (15)
EN 331 mark
