Присоед. набор для рег.вентиля "Cocon"
2 втулки под пайку, 15мм, Ду15


OVENTROP-Tьllenanschluss-Set fьr "Cocon"Regulierventile,Lцttьllen 2fach15 mm

Номинальный диаметр: DN 15

Item no.: 1140182
EAN: 4026755263770
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical modifications without notice.
Скачать GAEB Скачать описание продукта
Габариты товара
Длина Ширина Высота Вес
60,3 mm 32,5 mm 22,2 mm 0,13 kg
Габариты упаковки
Материал Количество в упаковке Длина Ширина Высота Вес
Сумка 1 65 mm 35 mm 25 mm 0,13 kg
Картон 10 200 mm 120 mm 75 mm 1,35 kg
Изображения продукта
  Размер файла
283,96 KB
  Размер изображения
2254 px x 1475 px

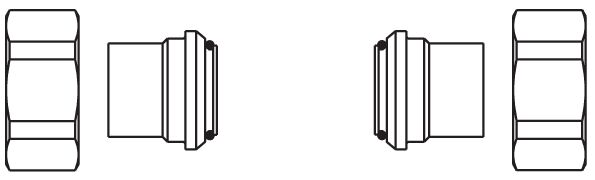

  Чертеж
  •  Эскиз товара
  •  Изоляция
Download
Изображения
  Размер файла
8,59 KB
  Размер изображения
595 px x 180 px

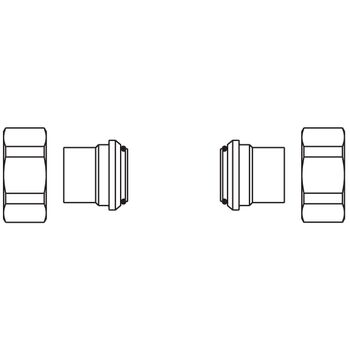

  Чертеж
  •  Эскиз товара
  •  Изоляция
Download
Classification
ETIM 7.0 EC003024
Fitting with 2 connections
Property Value
Model Other
Shape Straight
Wrench width 30 mm
Connection 1 Soldered end
Connection 2 Union nut
Bend angle 0 °
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Surface protection connection 2 Untreated
Surface treatment connection 2 Blasted
Max. medium temperature (continuous) 120 °C
Capped
Bend radius 0 mm
With gaskets
Nominal inner diameter of connection 2 3/4 inch (20)
Eccentric
Gastec QA
KIWA certified
Min. medium temperature (continuous) -10 °C
With drain
With de-aerator
Outer pipe diameter connection 1 19 mm
FM quality mark
VdS quality mark
UL quality mark
ULC quality mark
LPCB quality mark
Seal material Ethylene-propylene diene monomer rubber (EPDM)
Reducing
Max. operating pressure at 20 °C 10 bar
Material connection 1 Brass
Material connection 2 Brass
Material quality connection 1 Other
Material quality connection 2 Other
